20Khz 2000W ultrasonic welding system for earloop welding mask welding
|Power||2000W In max|
Automatic frequency tracking: The system automatically tracks the resonance frequency of the welding horn. Compensate for detuning caused by heat and other reasons.
Digital frequency control: The operating frequency is digitally controlled by the microcontroller.
Digital amplitude setting: This feature allows users to set precise amplitudes according to application requirements, which provides a larger range and repeatability of settings than analog systems.
The amplitude can be adjusted in a large range: 1% ~ 100% continuously adjustable, which is different from the shortcomings of traditional generators that are difficult to work with low amplitude.
High-speed micro-controller: The internal micro-controller operates at a frequency of up to 168MHz, which can accurately and timely control the working conditions.
Control and sampling interval of 0.5 milliseconds: 2000 times of sampling and control for welding process per second.
Color touch screen display: Through the color screen and touch, friendly and easy-to-use human-computer interaction is realized, and the experience is better.
Coexistence of buttons and touch: common functions can provide better interaction through buttons. Among them, the buttons use silicone keys, which have a better feel.
Operating language: The user can select the applicable language in the start screen: currently only supports English and Chinese.
Slant start: Ultrasonic energy supply and welding horn start at the most suitable ascent speed to reduce the electromechanical pressure of the system.
Vibration after welding: The user can start the ultrasonic after the welding and pressure holding process is finished, and the workpiece sticking to the welding horn will be shaken off.
Welding quality monitoring: user-definable process alarm. When it is outside the range of user-defined defective products, the system will generate an alarm to remind the user.
Diagnosis at startup: During the startup process, the main components of the system are tested.
Timing frequency search: When starting up, the system conducts frequency search every one minute to update the resonance frequency of the welding horn. This is especially effective for a welding process that can affect the temperature of the welding horn. A change in the temperature of the welding horn will cause the resonance frequency to drift.
All kinds of protection are complete: including over power consumption of the whole machine,
Inverter tube overcurrent,
Inverter tube drive undervoltage,
The load impedance is abnormal,
The load frequency is out of range,
Overcurrent of external devices (such as solenoid valve),
The control circuit voltage is out of range.

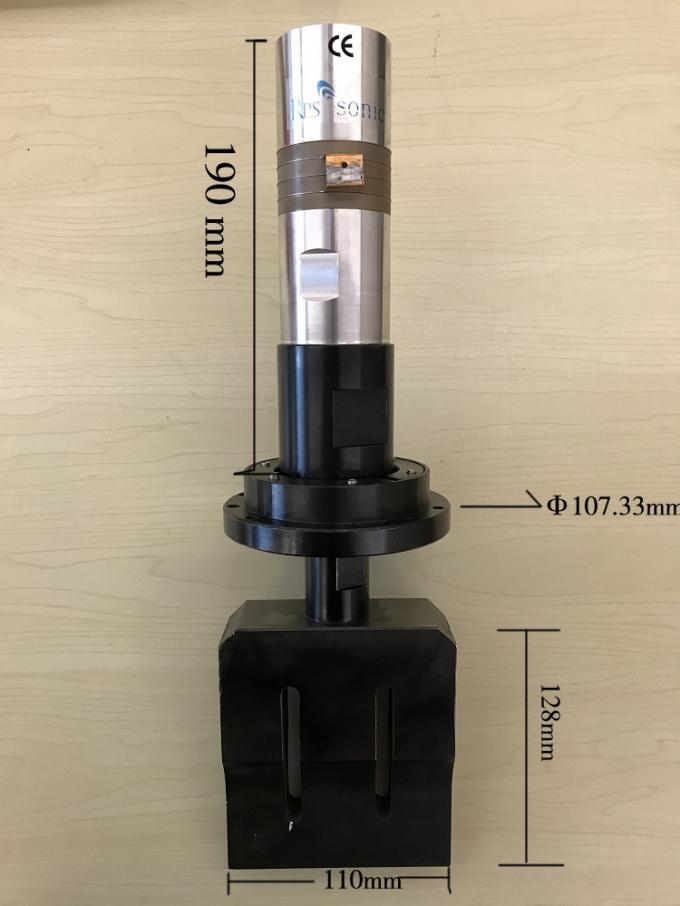

Product detail pictures:
