28Khz 1200w Ultrasonic spot welder with digital generator for nonwoven welding

short description:

Pistol ultrasonic spot welding machine, also known as portable ultrasonic welding machine, handheld ultrasonic welding machine, handheld welding machine, portable welding machine, ultrasonic spot welding machine, riveting machine, ultrasonic spot welding machine, can be used for butt welding of thermoplastics , Can also replace the welding head according to customer needs, used for riveting, spot welding, embedding, cutting and other processing processes. Compared with other traditional processes (such as gluing, ironing or screw fastening, etc.), it has high production efficiency and welding Notable advantages such as good quality, environmental protection and energy saving.


  • Frequency: 28Khz
  • Power: 1200w
  • Horn material: Titanium
  • Horn size: Customized
  • Weight: 8kg
  • Generator type: Digital
  • Name: ultrasonic spot welding machine
  • Product Detail

    FAQ

    Product Tags

    28Khz 1200w Ultrasonic spot welder with digital generator for nonwoven welding



    Parameter:

    Item Parameter
    Frequency 28Khz
    Power 1200W
    Ceramice chips 4chips
    Connect screw M8
    Probe weight 0.9kg
    Total weight 5kg

    Introduction:

        The function of the ultrasonic transducer is to convert the input electric power into mechanical power (ultrasonic) and then transmit it out, while it consumes a small part of the power. For the ultrasonic transducer, the technical problem to be solved is to design an ultrasonic transducer with a large working distance and a wide frequency band. The transducer is composed of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-8 piezoelectric material polarized in the thickness direction. The Cymbal array receiver is composed of 8-16 Cymbal transducers, two metal rings and rubber washers. The operating distance of the invention is greater than 35m, the frequency bandwidth reaches 10kHz, and it can detect the long-distance target moving at high speed.



       Application range of ultrasonic plastic welding machine:



      Automotive industry: (Traffic industry) Ultrasound can be controlled by computer programs to weld large and irregular workpieces such as bumpers, front and rear doors, workbenches, lamps, brake lights, etc. With the development of high-grade roads, more and more ultrasonic welding is used for reflectors.



      Electronics industry: using automation scheme design to enable users to achieve large-scale production while ensuring product quality



      Packaging industry: food packaging, hose sealing, connection of special packing belts.



       water purification filter element: Ultrasonic filter element welding machine is aimed at unfolding the microporous membrane. The end cover of the filter element is welded without water leakage and air leakage, and can be welded airtight.



      Ultrasonic medical filter welding machine, special ultrasonic welding machine for filter element, ultrasonic filter end cap welding machine, ultrasonic PP filter welding machine



       Ultrasonic filter element machine is simple to operate and has a beautiful appearance. It is suitable for mass production. It is a filter element manufacturer’s



      Ultrasonic spot welding machine is suitable for riveting welding process of automobile instrument panel and automobile door panel



       The composition of the ultrasonic transducer: The transducer is composed of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-8 piezoelectric material polarized in the thickness direction. The Cymbal array receiver is composed of 8-16 Cymbal transducers, two metal rings and rubber washers. The piezoelectric ceramic disc transducer is used as a basic ultrasonic transducer, which transmits and receives ultrasonic signals; the Cymbal array receiver is located on the disc piezoelectric transducer as an ultrasonic receiver for receiving the disc Doppler echo signal outside the transducer frequency band. The operating distance of the invention is greater than 35m, the frequency bandwidth reaches 10kHz, and it can detect the long-distance target moving at high speed.

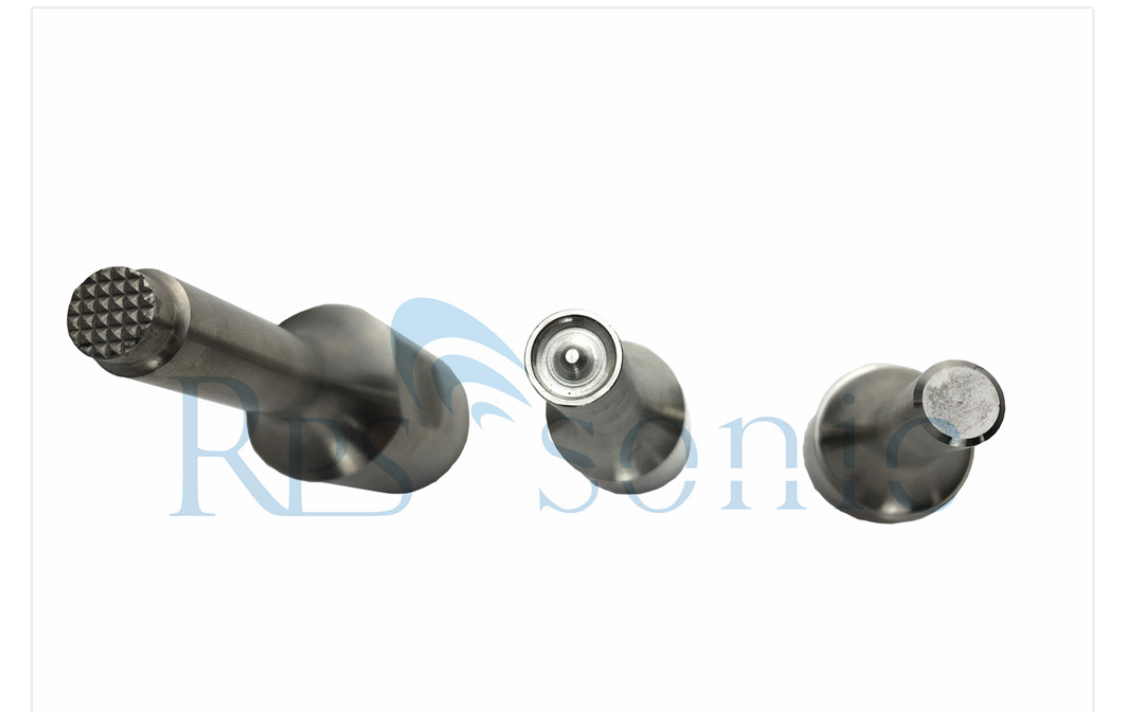

     ultrasonic welding horn


  • Previous:
  • Next:

  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
