35Khz Ultrasonic cutting and sealing machine for nonwoven cutting

35Khz Ultrasonic cutting and sealing machine for nonwoven cutting

Parameter

Introduction:
35khz Ultrasonic cutting and sealing equipment for synthetic fabrics is continuously on the rise even in fields unrelated to the textile industry. Some of them include: disposable items, filtering components, outdoors and medical fabrics.

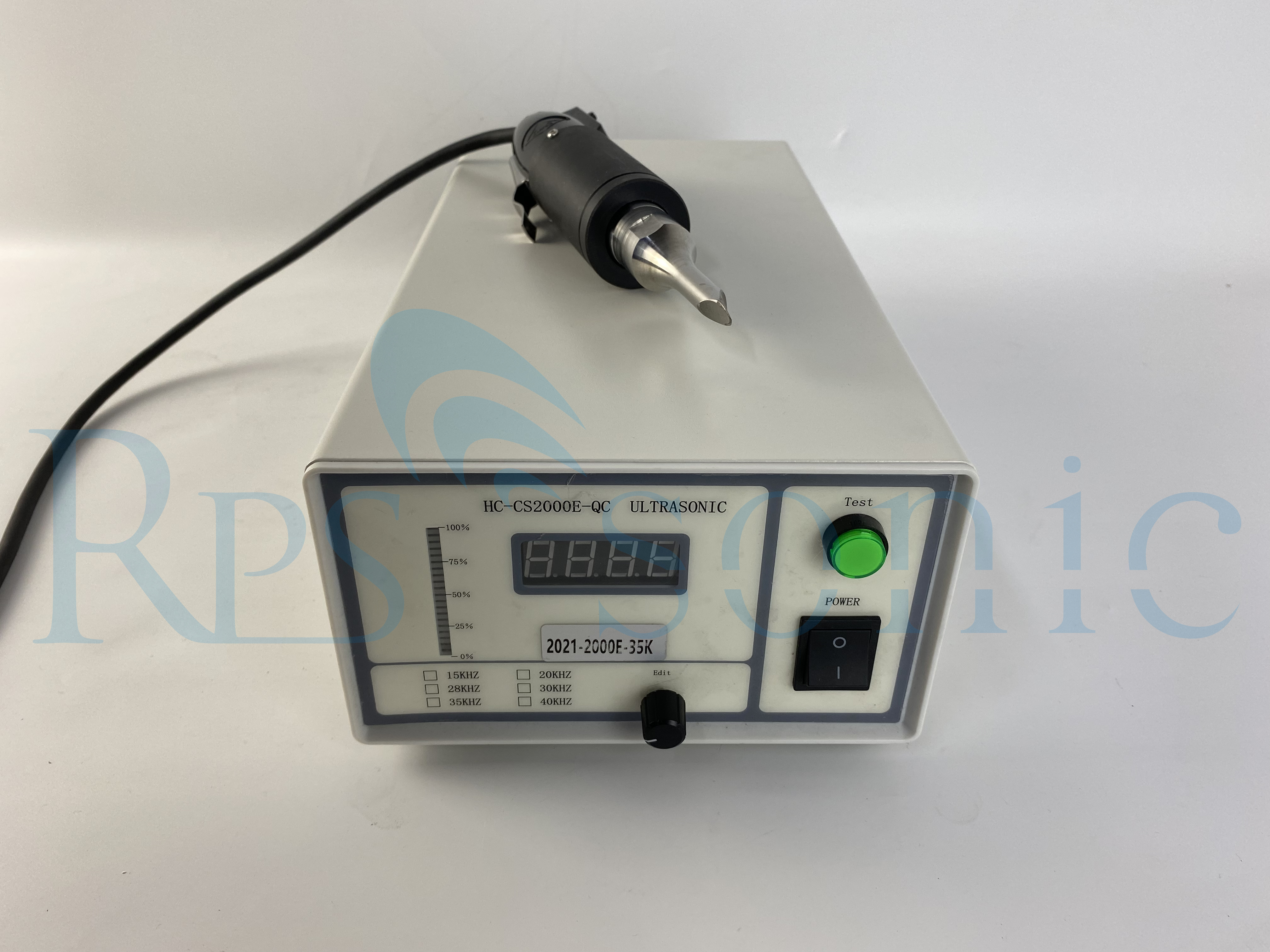

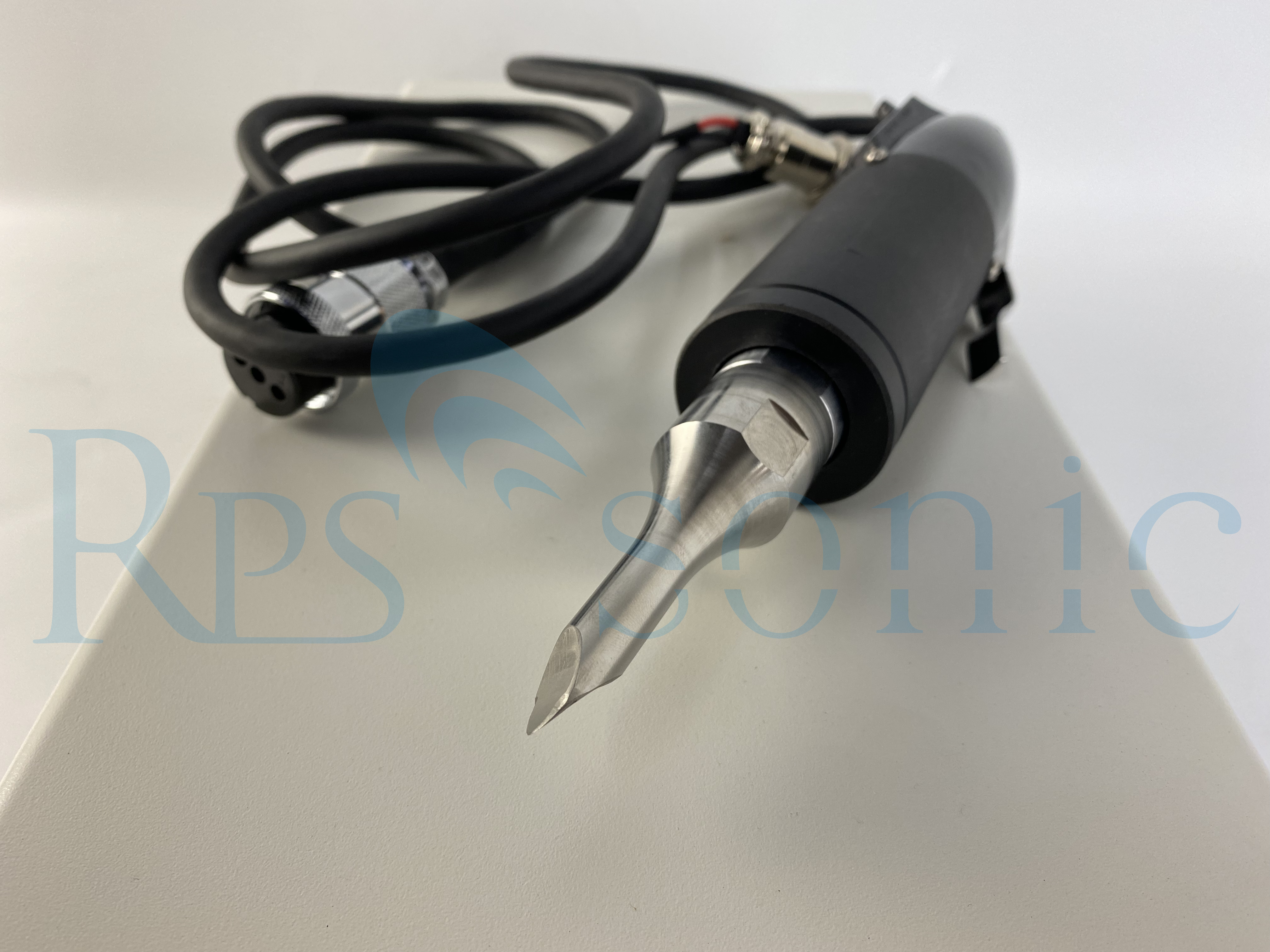

This machine can be operated manually and it has been designed to perform precise linear cuts on synthetic fabrics. It is possible to connect it with any type of 35khz kHz ultrasonic generator, plus it is equipped with a transducer with piezoelectric ceramics and a machete shaped ultrasonic sonotrode. Its structure is devised to be mounted on workbenches with the assistance of two wheels installed at its base, allowing for its free sliding along the supporting ring.
Cutting with ultrasound technology may be manual, semi or fully automated. They are usually tailored to meet each client’s needs and production standards. Ultrasonic sealing can be used on drapes made of just 25% synthetic fibers, such as polyester, viscose or rayon.Ultrasonic cutting edge sealing machine consists of the ultrasonic generator(drive power) and ultrasonic host (cutting) two parts. Through the Ultrasonic high-frequency vibration, first adhesive fabric, and then cut the fabric and cut edge.To be installed on machines or lines, cutting the fabric with no scattered side, no hardening, smooth and beautiful, operation safe and reliable. Mainly used in chemical fiber textile, geotextile, woven cloth, plastic film and non-woven processing and weaving industry, woven fabric containing polypropylene, polypropylene thermoplastic material composition.
Ultrasonic sealing films and fabrics: finds application in the apparel, non-woven, packaging and textiles industries.
The materials may be 100% synthetic, or fibre blends with up to 35% non- thermoplastic fibre content.
Materials which can be processed are polyester, polyethylene, polypropylene, rigid thermoplastics, thermoplastic polyurethane, some vinyls and thermoplastic coated foils and papers.

Advantages:
- Easy of use and steady production results
- It seal off drape borders immediately
- Avoiding any unwanted fraying
- Efficient space optimization
- Guarantees quick, clean solutions without emitting hazardous fumes.

Application:

1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
