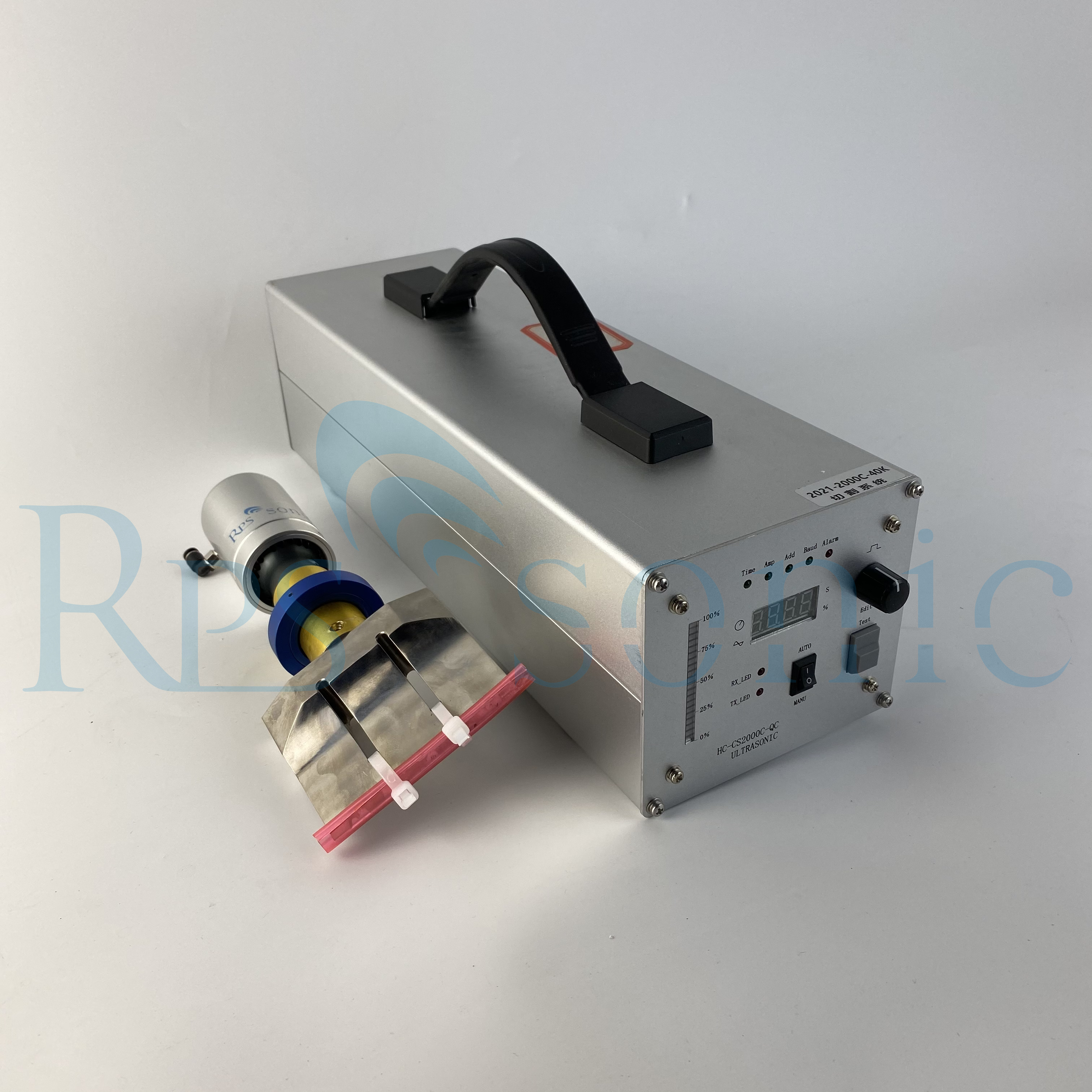

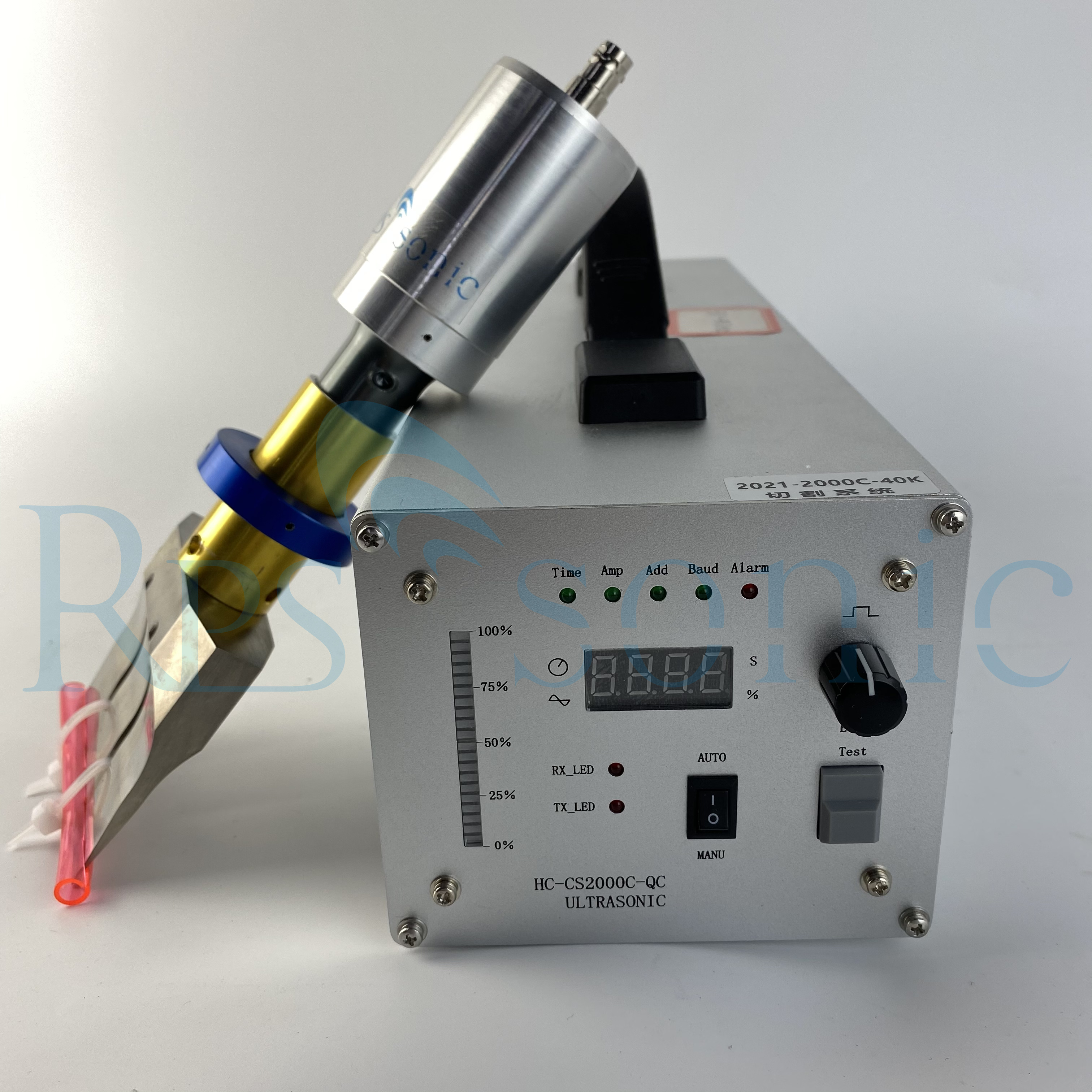

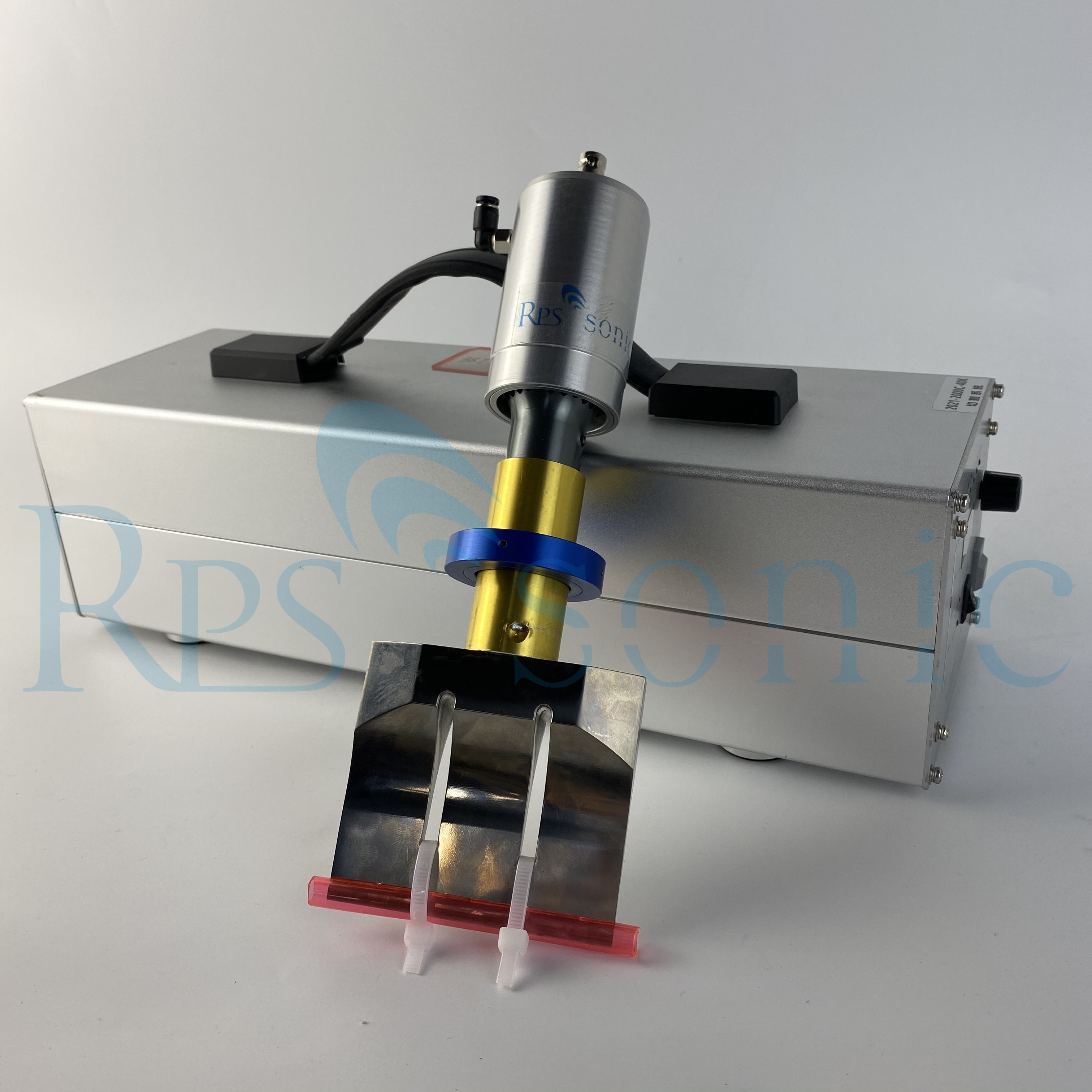

40Khz Digital generator Ultraosnic rubber cutting system for tire cutting

40Khz Digital generator Ultraosnic rubber cutting system

Parameter

Description

Ultrasonic cutting knife (cutting machine) is a special application of ultrasonic cutting. It is a kind of equipment that uses ultrasonic energy for cutting processing. Its biggest feature is that cutting does not require cutting edges. In other words, the cutting edge in the traditional sense is not used.
Ultrasonic cutting knife, also known as ultrasonic cutting machine, is a kind of ultrasonic equipment specially used for cutting, and it is one of the important categories of ultrasonic applications. The principle of ultrasonic cutting is completely different from traditional cutting. Ultrasonic cutting uses the energy of an ultrasonic transducer to heat and melt a part of the material to be cut, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and will not cause chipping or damage to the material being cut. At the same time, because the cutting knife is doing ultrasonic vibration, the friction resistance is very small, and the material to be cut is not easy to stick to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials, such as food, rubber, etc., or objects that are inconvenient to apply pressure.

Ultrasonic cutting also has a great advantage, that is, it has fusion at the cutting part while cutting, and the cutting part is perfectly sealed without causing flashing of the textile material. The use of ultrasonic cutting knife can also be expanded, such as digging holes, shoveling, scraping paint, carving and so on.

The basic composition of an ultrasonic cutting knife is an ultrasonic transducer, an horn, a tool head (knife body), and a driving power supply. The ultrasonic drive power converts the mains electricity into high frequency and high voltage alternating current, which is output to the ultrasonic transducer. The ultrasonic transducer is actually equivalent to an energy conversion device, which can convert the input electrical energy into mechanical energy, that is, ultrasound. Its manifestation is that the transducer stretches back and forth in the longitudinal direction. The frequency of the telescopic movement is equal to the frequency of the high-frequency alternating current supplied by the driving power supply. The role of the horn is to fix the entire ultrasonic vibration system, and the other is to adjust the output amplitude of the transducer. On the one hand, the tool head (blade body) amplifies the amplitude and focuses the ultrasonic waves. On the other hand, it outputs ultrasonic waves, and uses the similar cutting edge of the cutting knife to concentrate the ultrasonic energy into the cutting part of the material to be cut. Under the action of huge ultrasonic energy, this part instantly softens and melts, and its strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting can be achieved.

Features

1. Full range of modular structure
2. Digital ultrasonic generator
3. Mainly used in the fields of textiles, films and non-woven fabrics
4. Ultrasonic cutting can be used in the food industry, as well as materials such as rubber, foam plastic and artificial leather. 5. Customized units, which can be flexibly installed in automated production lines
6. The vibration system can be quickly switched and can be integrated in the production line
7. The device does not need maintenance, the structure is sturdy, and it is easy to operate.

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
