Advanced 20Khz Ultrasonic Extraction Equipment for Sale - Powersonic

Experimental level 20Khz Ultrasonic sonicator equipment for cell disruptor

Description

The ultrasonic cell disruptor converts electrical energy into sound energy through a transducer. This energy passes through the liquid medium and becomes dense small bubbles. These small bubbles burst quickly and generate energy like small bombs, thus playing The role of substances such as broken cells

The ultrasonic cell crusher converts electrical energy into sound energy through a transducer, and this energy passes through the liquid medium and becomes dense small bubbles. cells and other substances. Under ultrasonic irradiation, vacuoles are formed in organisms, and mechanical shear pressure and turbulence are generated with the vibration of vacuoles and their violent implosion, causing tissue disintegration and necrosis. In addition, instantaneous high temperature (about 5000°C) and high pressure (up to 500×104Pa) are generated when the cavitation bubble bursts, which can thermally dissociate water vapor to generate .OH radicals and .H atoms, which are composed of .OH radicals and .H Atom-induced redox reactions can lead to polymer degradation, enzymatic inactivation, lipid peroxidation, and cell killing.

Structural features

●The ultrasonic probe is made of imported titanium alloy material
●High-efficiency transducer
●The amplitude is automatically adjusted, and the amplitude remains consistent under different load conditions
●Set the ultrasonic interval time
●Microcomputer control, continuous adjustment of ultrasonic power

Parameter

Festures

1. Operating frequency range: 19.5 ~ 21.5KHz. Frequency automatic tracking;

2. It can store ten sets of routine program data and one set of combined programs, and there are two working modes: timing and counting;

3. The combined program can be composed of ten sets of conventional programs, and the cyclic or non-cyclic working mode can be selected;

4. Over temperature protection and alarm function;

5. The ultrasonic output intensity is automatically limited;

6. Timing mode working time timing: 0～99 hours, 59 minutes and 59 seconds;

7. Ultrasonic time range: 0 to 99 hours, 59 minutes and 59 seconds;

8. Interval time range: 0 to 99 hours, 59 minutes and 59 seconds. Gap time = 0 for continuous operation of ultrasound;

9. Temperature control accuracy: ±1℃;

10. Working voltage: VAC100-240, 50-60Hz;

Working environment: indoor (no humidity, no direct sunlight, no corrosive gas);

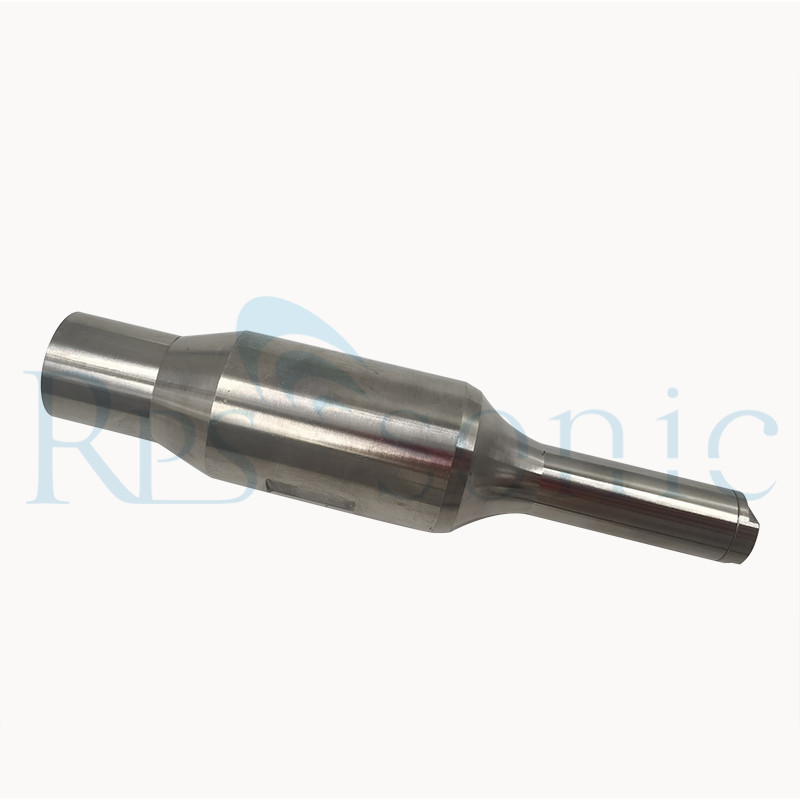

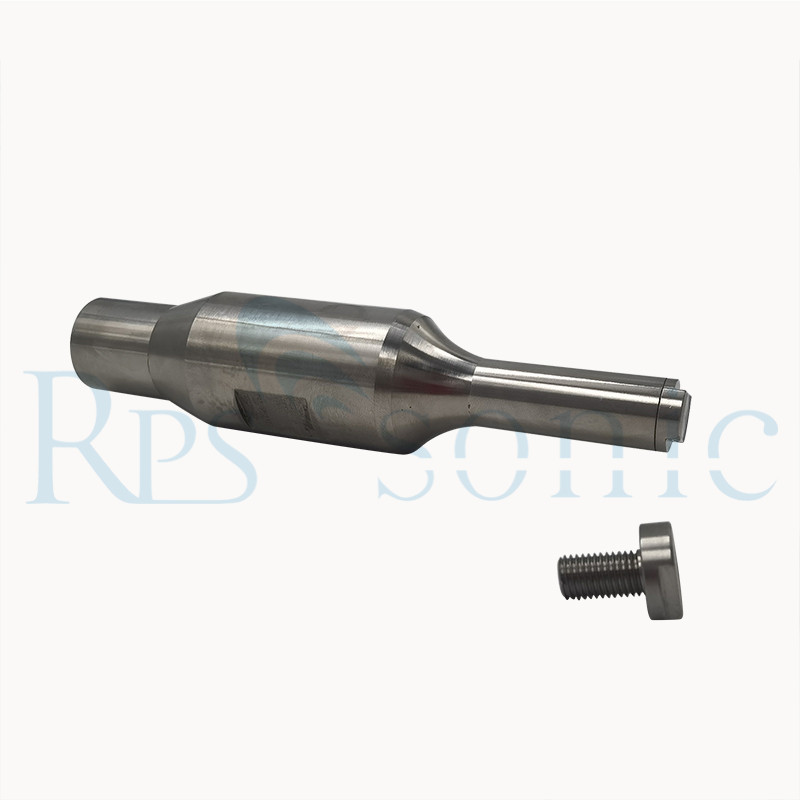

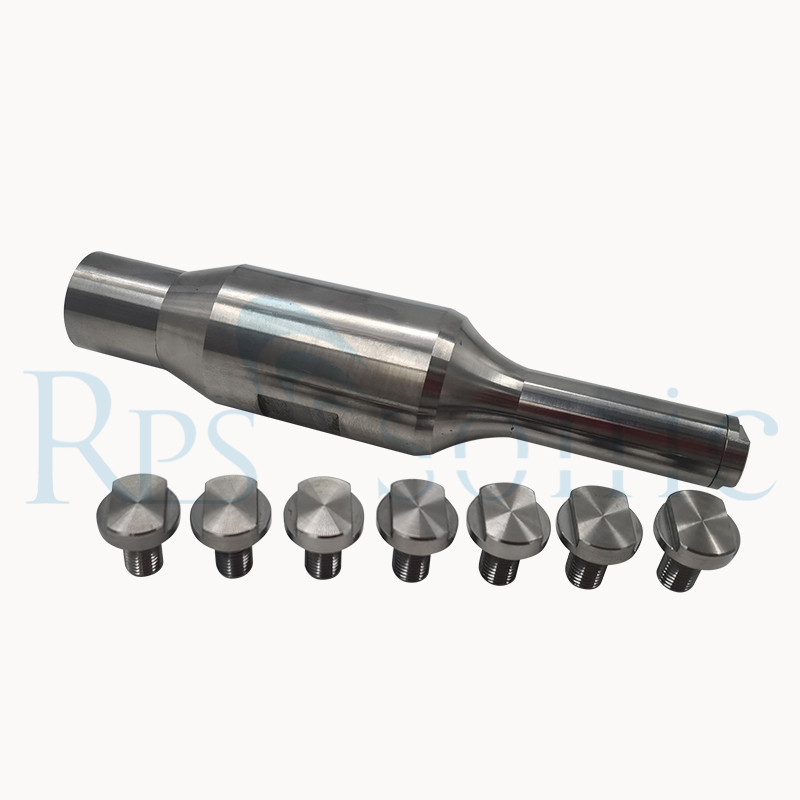

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
