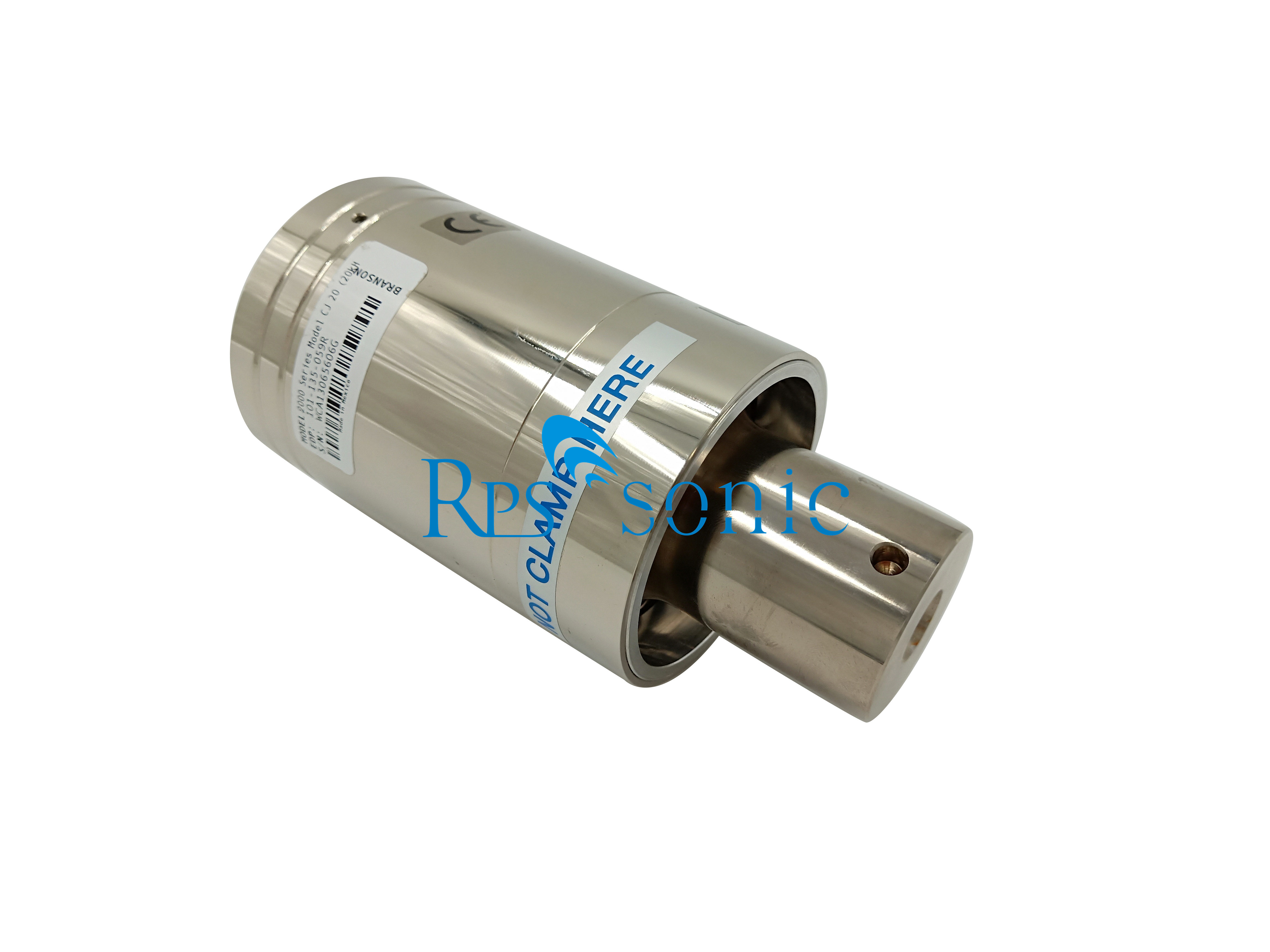

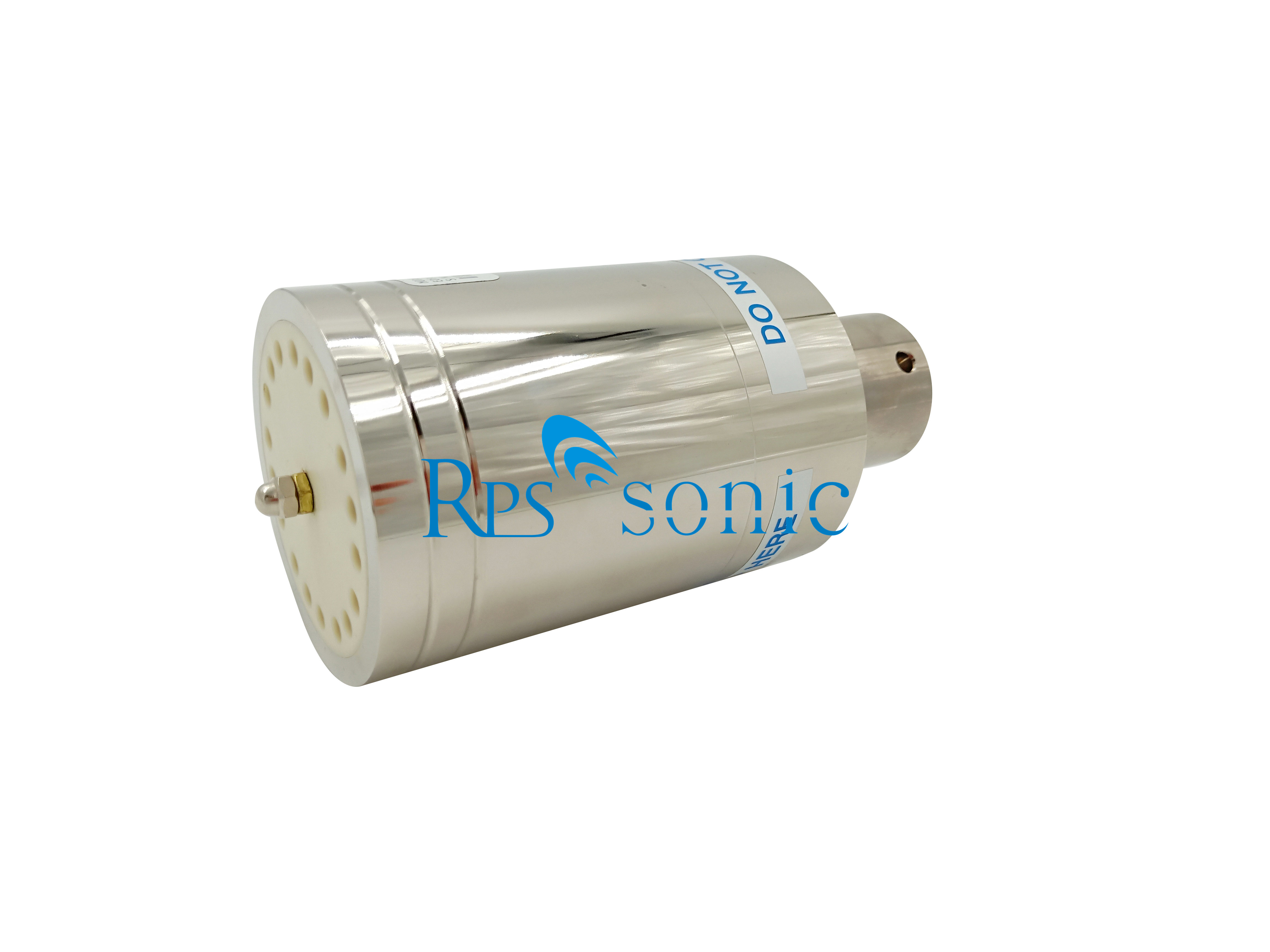

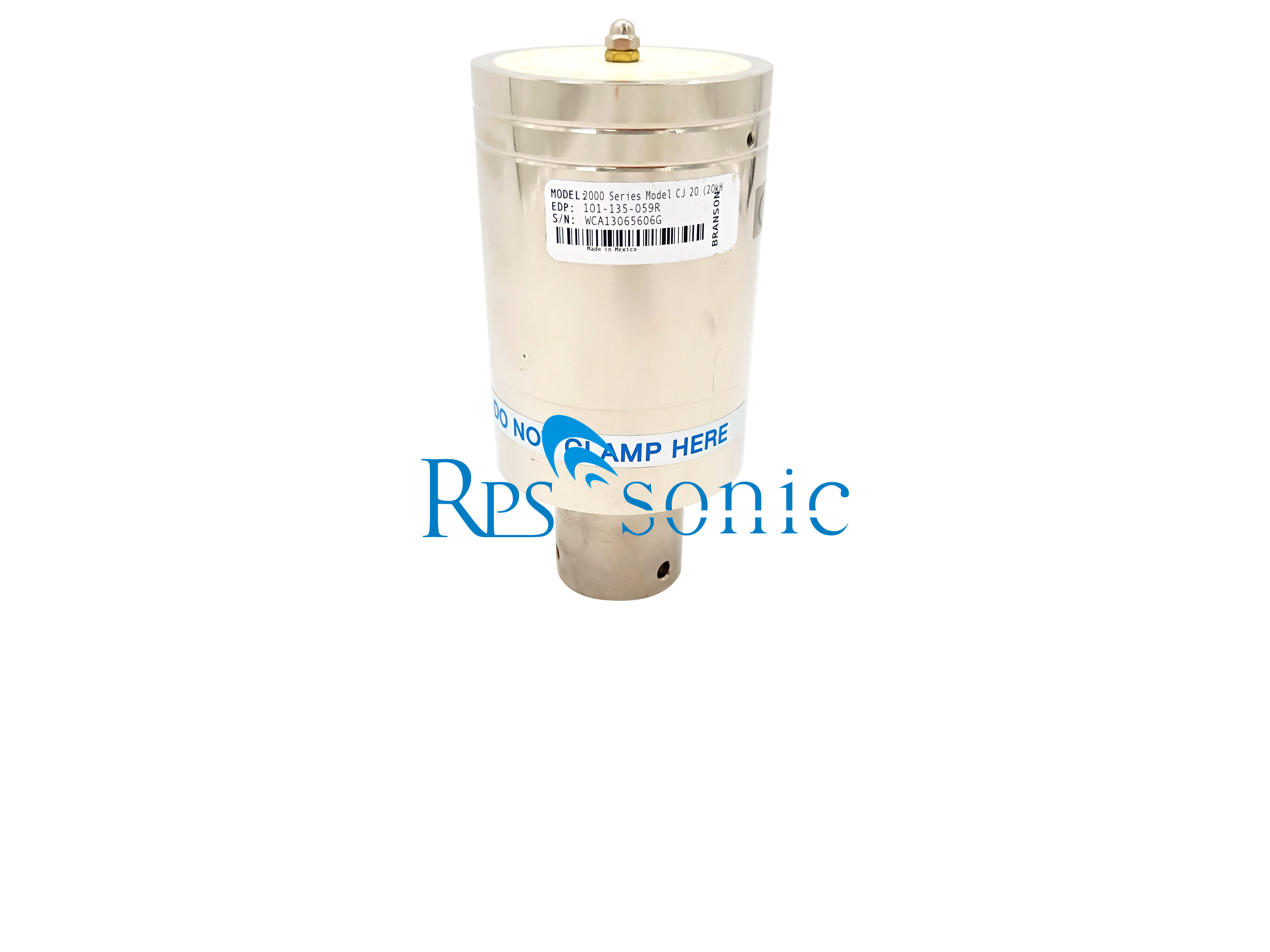

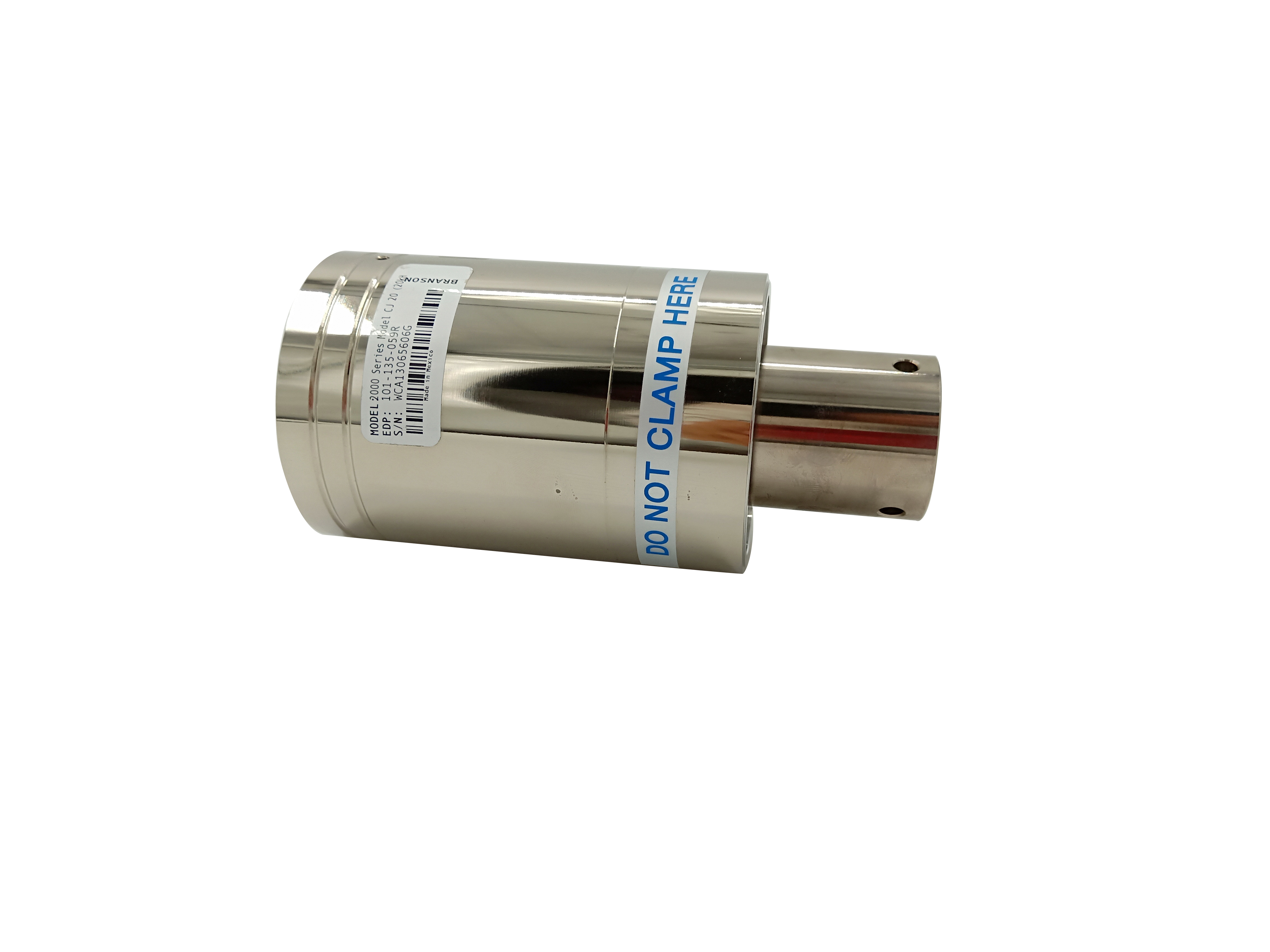

Branson CJ20 Ultrasonic welding transducer

Branson CJ20 Ultrasonic welding transducer

short description:

short description:

This ultrasonic welding transducer replace for Branson CJ20, The main factor determining the quality of the transducer is the assembly process and the quality of the ceramic chips. Our company uses the best quality ceramics chips  made in China, and our company has more than ten years of experience in assembling transducers, and the assembly technology is exquisite. Now, we can supply ultrasonic welding transducer/ converter to replace some famous brand, such as Branson/ Telsonic/ Rinco/ Dukane and obtained well reputation.


  • Frequency: 20Khz
  • Power: 2000w
  • Joint bolt: 1/2-20 UNF
  • Ceramic disc Diameter: 50 mm
  • Quantity of Ceramic discs: 6pcs
  • Capacitance: 20nF
  • Amplitude: 12um

    Product Detail
    FAQ
    Product Tags

    Branson CJ20 Ultrasonic welding transducer


    Parameter

    ItemParameter
    Frequency19.4~19.8Khz
    Power2600W
    Impedance12
    Capatance19000~21000pf

    Description

    What is ultrasonic transducer

    Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.

    The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

    This ultrasonic welding transducer replace for Branson CJ20, The main factor determining the quality of the transducer is the assembly process and the quality of the ceramic chips. Our company uses the best quality ceramics chips  made in China, and our company has more than ten years of experience in assembling transducers, and the assembly technology is exquisite. Now, we can supply ultrasonic welding transducer/ converter to replace some famous brand, such as Branson/ Telsonic/ Rinco/ Dukane and obtained well reputation.
    The transducer supplies the ultrasonic vibrations by means of piezoelectric converters which transform electrical energy into mechanical movement. Power applied to the transducer at 20kHz can range from less than 50 Watts up to 2000 Watts.
    The transducer is made from a number of polycrystalline ceramic elements separated by thin metal plates, clamped together under high pressure. When an alternating voltage (dV/dt) is applied to the converters (or ceramics), a corresponding electric field (dE/dt) is produced which results in a variation in thickness (dL/dt) of the ceramic elements. This variation in thickness induces a pressure wave (dP/dt). Because the molecules or atoms of a solid are elastically bound to one another, the pressure wave results in a wave propagating through the material which is reflected by the ends the metal mass of the converter.



    Advantage

    1. Poreless, high-density piezoceramics.

    2. Mechanically very strong and stable.

    3. High mechanical quality factor.

    4. Excellent electro-acoustic conversion efficiency.

    5. Minimal thermal dissipation and power losses.


  • Previous:
  • Next:
  • Previous:
  • Next:

    • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
