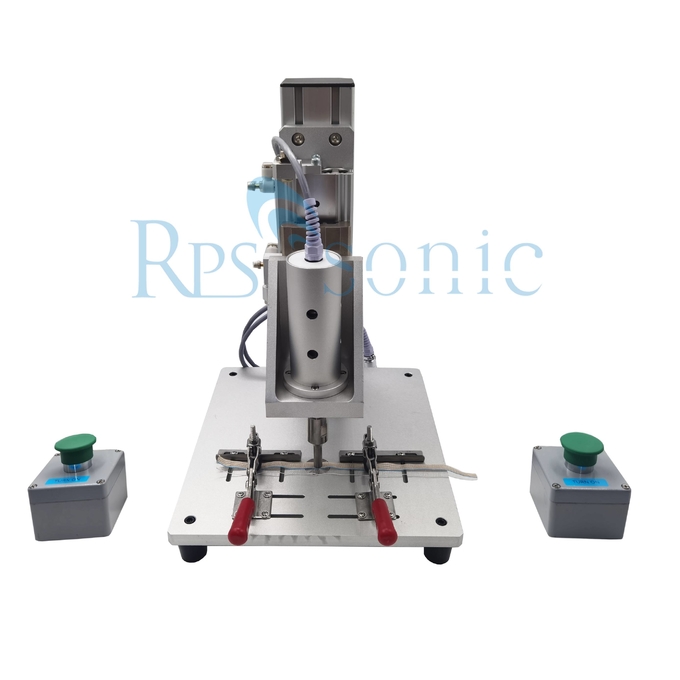

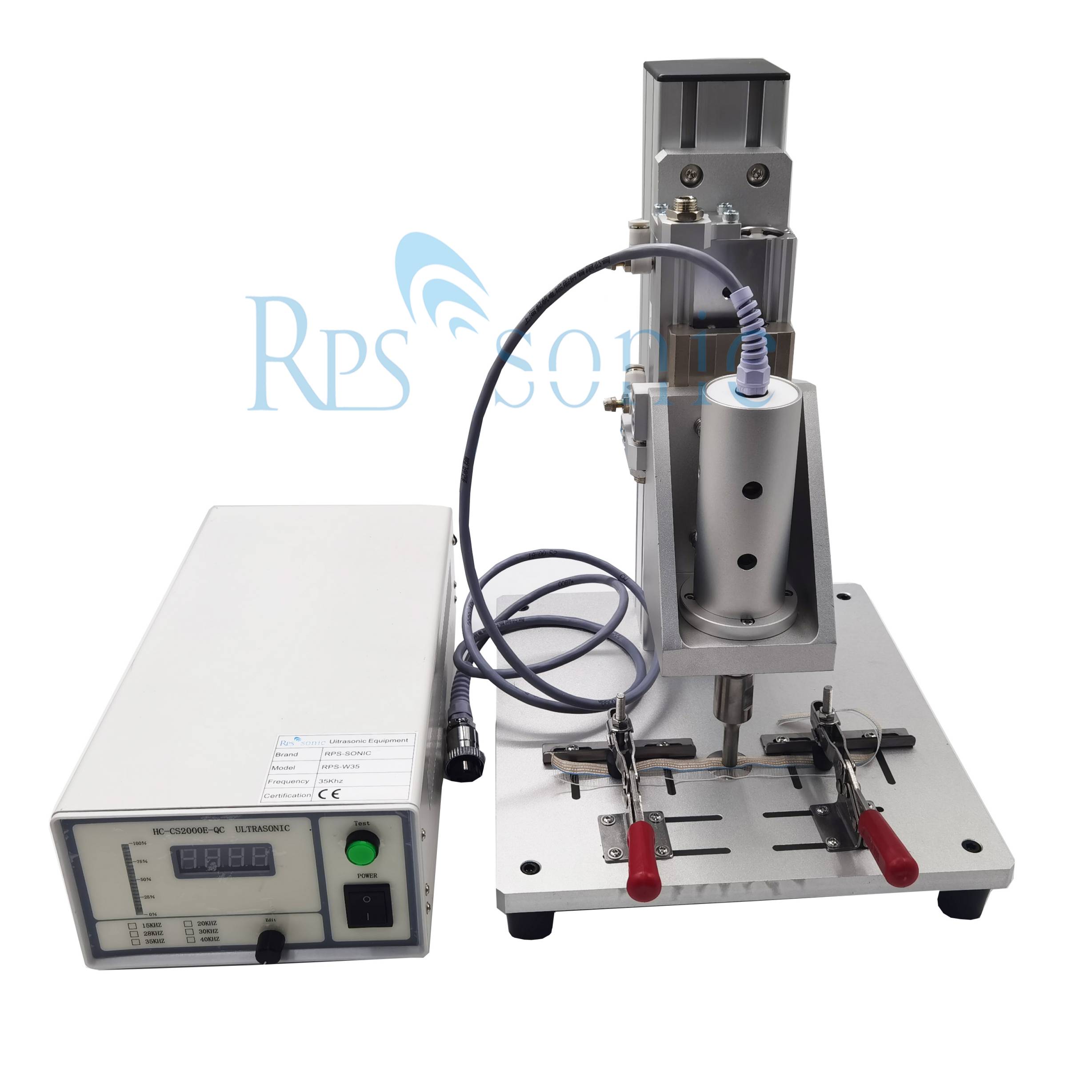

Desktop 35Khz 600w Ultrasonic Spot Welding Machine For Nonwoven

Desktop 35Khz ultrasonic spot welding machine for ultrasonic welding

Parameter

Description

Ultrasonic spot welding machine can be used for butt welding of thermoplastic, can also be replaced according to customer needs welding head, for welding, spot welding, embedded, cutting and other processing technology, compared to other traditional processes (such as adhesive, Fastening, etc.), with high production efficiency, welding quality, environmental protection and energy saving and other significant advantages. Through the welding of ultrasonic energy to the welding area, due to the welding of the two joints at the interface of large resistance at the interface, it will produce local high temperature. And because of poor thermal conductivity of plastic, the moment can not be distributed in time, gathered in the welding area, resulting in two plastic contact surface rapid melting, coupled with a certain pressure, to integrate into one. When the ultrasonic stops, let the pressure last for a few seconds to make it solidified, thus forming a solid molecular chain, to achieve the purpose of welding, welding strength can be close to the strength of raw materials.

Ultrasonic Spot Welder Application

Portable spot welding machine is widely used in the apparel industry, the trademark industry, the automotive industry, plastic electronics, household goods industry.
Clothing industry: underwear pants needle before the process, the ribbon elastic belt welding; can be used for point drilling.
Trademark industry: weaving Mark with, India-Mark, and so on.
Automotive industry: door noise cotton, wiper seat, engine cover, water tank cover and so on.
Plastic electronic: small plastic pieces riveting and so on.
Household goods industry: fiber cotton spot welding and so on.

Advantages of portable ultrasonic welding machine

Hand-held ultrasonic welding is a fast, clean, safe and other advantages of plastic parts to achieve the advanced technology, the use of Japanese components, force large-scale reliable; multiple protection circuit for enterprises to provide efficient welding methods to reduce production costs.

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
