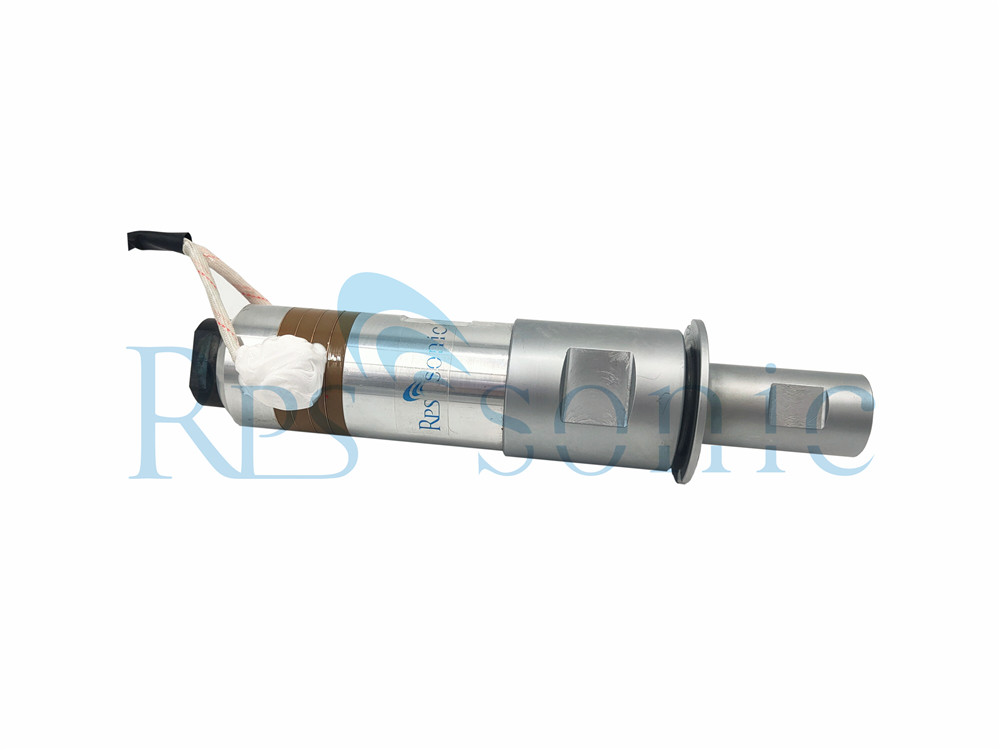

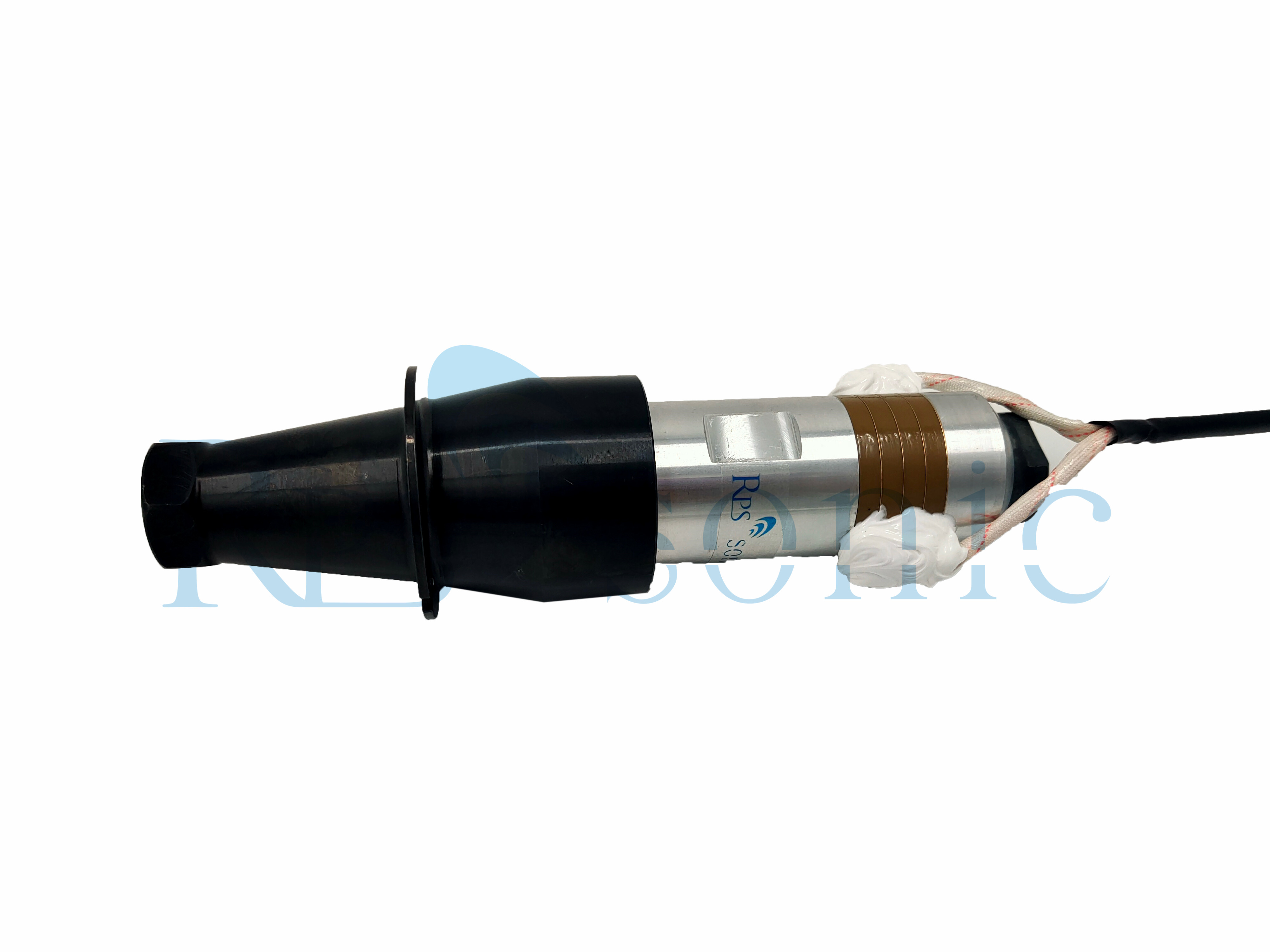

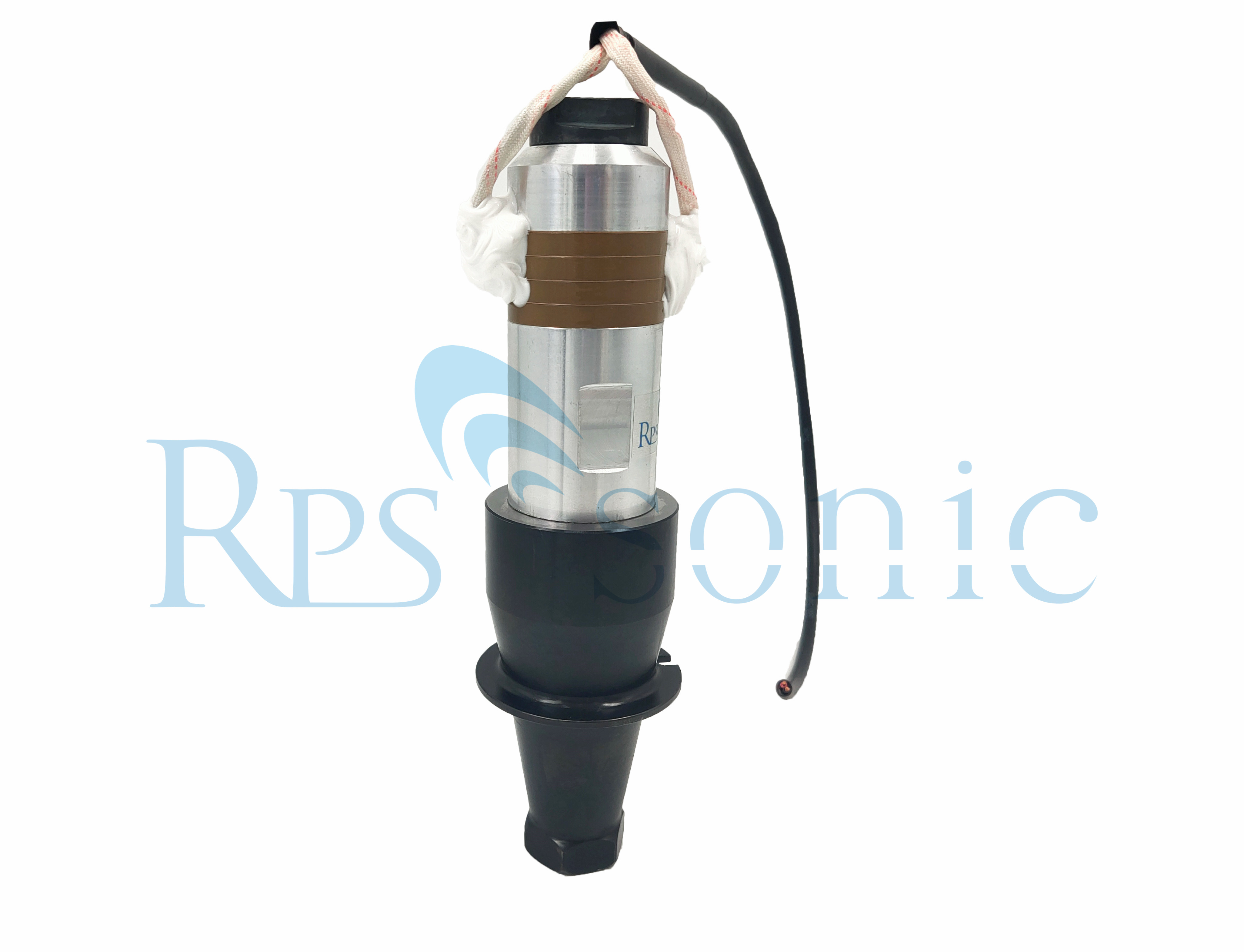

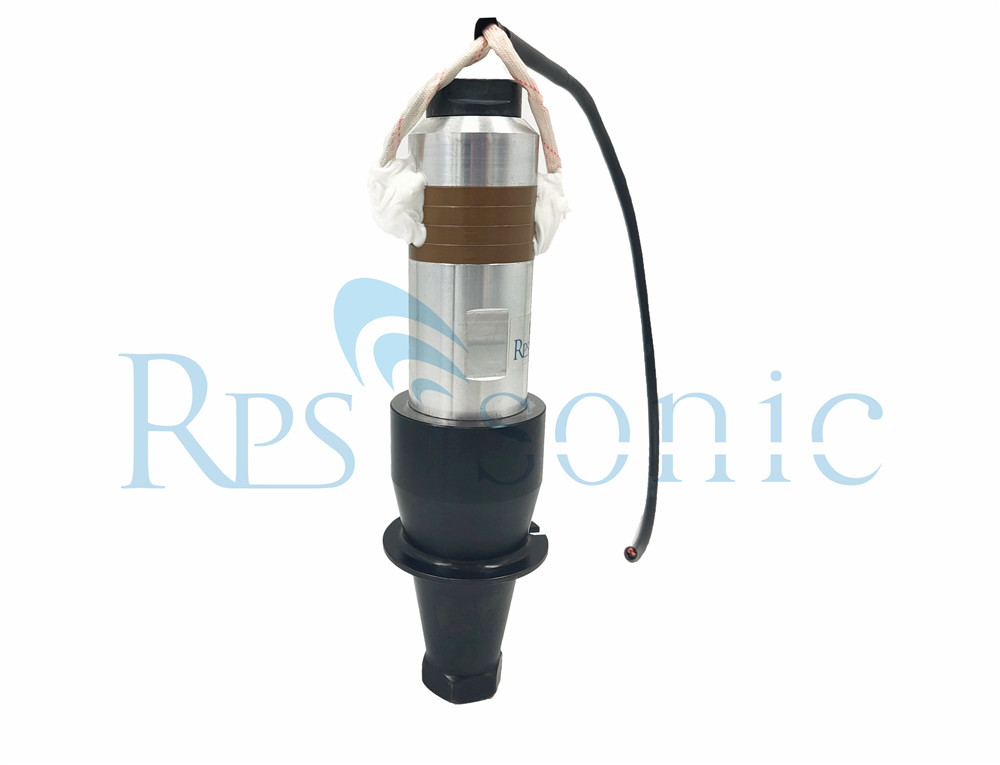

High quality 20Khz 2000w Ultrasonic Welding Transducer For plastic Welding machine

20Khz 2000wUltrasonic Welding Transducer For plastic Welding machine

Parameter

Description

Ultrasonic transducer is a kind of energy conversion device. Its function is to convert the input electric power into mechanical power (ultrasound) and then transmit it out, and it consumes only a small amount of power.

Ultrasonic generator (also called ultrasonic power supply) converts 220V mains electricity into high-frequency current and transmits it to piezoelectric ceramics. The piezoelectric ceramics resonate at ultrasonic frequencies. The piezoelectric effect of the material converts electrical signals into linear mechanical vibrations. , And then amplify (reduce) the amplitude through the ultrasonic horn, and finally transmit it to the tool head for work. Ultrasonic transducers generally come in two forms: magnetostrictive and piezoelectric ceramics. All transducers used by our company are piezoelectric ceramics.

Magnetostriction: The effect of a material being deformed under the action of a magnetic field or a magnetic field is generated when the material is deformed. These materials usually contain nickel which exhibits strong magnetostriction. Magnetostrictive materials (usually laminated) are used in magnetostrictive sensors. Due to eddy currents, magnetostrictive transducers usually have higher losses than piezoelectric transducers and therefore have higher cooling requirements.

The composition of ultrasonic transducer
Almost all piezoelectric transducers used for power ultrasound are of the Langevin type, that is, one or more piezoelectric ceramics are mechanically compressed (prestressed) between the front driver and the rear driver.

The ultrasonic transducer is mainly composed of a central piezoelectric ceramic element, front and rear metal cover plates, prestressed screws, electrode sheets and insulating tubes

Rear driver: The cylindrical element on the back of the piezoelectric transducer. The rear driver is close to the last piece of piezoelectric ceramic and is usually preloaded by stacking bolts.
Electrode sheet: A thin conductive disc between the piezoelectric ceramics adjacent to the transducer. The transducer drive voltage is applied between these electrodes.
Front drive: Transmit the ultrasonic energy of the transducer to the horn or tool head. The front drive usually includes a mounting flange for connecting the housing.
Prestressed screw: A single stacked bolt passes through the center hole of the ceramic. After tightening the bolt, the ceramic will be compressed between the rear driver and the front driver, thereby applying the required prestress to the ceramic.
Piezoelectric ceramics: Piezoelectric ceramics is the heart of the transducer, a component that converts the electrical signal of the ultrasonic generator into linear mechanical vibration.

The influence of prestress on the transducer
The impedance and frequency of the piezoelectric ceramics will be stable with the increase of the prestress. A larger prestress can reduce the impedance of the transducer. If the piezoelectric ceramics are not sufficiently clamped, the impedance of the transducer will become larger.

Is the prestress of the transducer larger the better?

Excessive prestress will reduce the performance of the transducer, which is mainly reflected in the following aspects:

The performance of piezoelectric ceramics changes under the action of compression bias. In particular, the maximum safe temperature at which the material can work effectively may be greatly reduced, and high compressive stress may lower the Curie temperature.
Excessive pretension will cause significant depolarization, and will also produce unstable impedance and aging.
Excessive prestress will reduce the service life of the transducer, and in severe cases will cause the ceramic chip of the transducer to crystallize.
Excessive prestress of the transducer will show a smaller impedance in the early stage, but the performance of the transducer will decrease with the passage of time, accompanied by high-impedance products.

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
