Personlized Products China Herb Extraction Ultrasonic Vibration Concentrator

short description:

short description:

Ultrasonic homogenizers, commonly referred to as “sonicators,” disrupt tissues and cells through cavitation and ultrasonic waves.  Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse.  This creates shear and shock waves which tear apart cells and particles.


  • Frequency: 20Khz
  • Power: 3000w*3 in max
  • Horn Size: Customized
  • Weight: 300kg
  • Generator: Digital
  • Type: Diamond shape

    Product Detail
    FAQ
    Product Tags

    We delight in an exceptionally good popularity amongst our customers for our fantastic product high quality, competitive cost as well as ideal service for Personlized Products China Herb Extraction Ultrasonic Vibration Concentrator, Now we have four leading items. Our merchandise are best sold not only inside the Chinese current market, but also welcomed in the international market.
    We delight in an exceptionally good popularity amongst our customers for our fantastic product high quality, competitive cost as well as ideal service for China Liquid Concentrator, Liquid Concentration Machine, Welcome to visit our company, factory and our showroom where displays various hair products that will meet your expectation. Meanwhile, it is convenient to visit our website, and our sales staff will try their best to provide you the best service. Please contact us if you need more information. Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation.

    High power 20Khz Ultrasonic extraction equipment for CBD oil




    Parameter

    ModelSONO20-1000SONO20-2000SONO15-3000SONO20-3000
    Frequency20±0.5 KHz20±0.5 KHz15±0.5 KHz20±0.5 KHz
    Power1000 W2000 W3000 W3000 W
    Voltage220/110V220/110V220/110V220/110V
    Temperature300 ℃300 ℃300 ℃300 ℃
    Pressure35 MPa35 MPa35 MPa35 MPa
    Intensity of sound20 W/cm²40 W/cm²60 W/cm²60 W/cm²
    Max Capacity10 L/Min15 L/Min20 L/Min20 L/Min
    Tip Head MaterialTitanium AlloyTitanium AlloyTitanium AlloyTitanium Alloy



    Description

    Ultrasonic cavitation is a very effective emulsification method to prepare superior emulsions in the nano range. The sonication of emulsions with turbidities makes them translucent or clear and transparent, because it reduces the CBD droplet size to diminutive droplets in the suitable range This increases the emulsion stability significantly. Ultrasonically produced emulsions are often self-stable without addition of an emulsifier or surfactant. For cannabis oil, nano emulsification improves cannabinoids absorption (bioavailability) and produces a more profound effect. Therefore lower cannabis product doses can give you the same effects.

    Cannabis extracts (CBD, THC) are hydrophobic (not water soluble) molecules. In order to overcome the immiscibility of cannabinoids in water to infuse edibles, beverages and creams, a proper method of emulsification is needed.

    Ultrasonic essential CBD oil emulsifier use the mechanical sheer force of ultrasonic cavitation to reduce the droplet size of cannabinoids to produce nanoparticles, which will be smaller than 100nm. Ultrasonics is a widely used technology in the pharmaceutical industry for making stable water soluble nanoemulsions.

    Steps

    Oil: Vegetable oils such as olive oil, coconut oil or MCT oil assist the absorption of the active substances of cannabis into the digestive system. Cannabinoids such as CBD and THC can hardly be absorbed without oil or fat. To achieve an optimal absorption, cannabis extracts are mostly emulsified into oil and then further processed into an emulsion.
    Emulsifier: Lecithin, which is available in powder, granules and liquid form, is an emulsifier, which is suitable for food and medical products. For cannabis oil emulsions, lecithin is one of the most common emulsifiers. Other emulsifiers, which give good effects are gum arabic or starch-based emulsifiers.

    ADVANTAGES

    1. Due to the CBD droplet is dispersed to nanoparticles, the stability of the emulsions is increased significantly. Ultrasonically produced emulsions are often self-stable without addition of an emulsifier or surfactant.

    2. For CBD oil, nano emulsification improves cannabinoids absorption (bioavailability) and produces a more profound effect. Therefore lower cannabis product doses can reach the same effects.

    3. The life of our equipment is more than 20,000 hours and can work continuously for 24 hours per day.

    4. Integrated control, one-key start, easy operation. Can be connected to PLC.

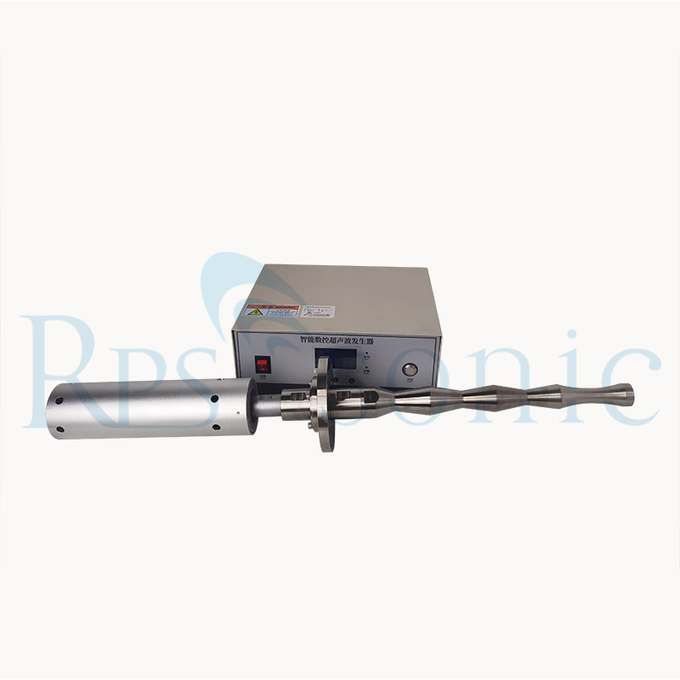

    Ultrasonic Homogenizer Mixing Machine 20 Khz 3kw For Cbd Oil Nanoemulsion 0

    We delight in an exceptionally good popularity amongst our customers for our fantastic product high quality, competitive cost as well as ideal service for Personlized Products China Herb Extraction Ultrasonic Vibration Concentrator, Now we have four leading items. Our merchandise are best sold not only inside the Chinese current market, but also welcomed in the international market.
    Personlized Products China Liquid Concentrator,Liquid Concentration Machine, Welcome to visit our company, factory and our showroom where displays various hair products that will meet your expectation. Meanwhile, it is convenient to visit our website, and our sales staff will try their best to provide you the best service. Please contact us if you need more information. Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation.


  • Previous:
  • Next:


  • Previous:
  • Next:
  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
