Separate Excitation Ultrasonic Frequency Generator Home Textile Industry Use


Frequency:20khzPower:2000W In Max
Excitement:Separate ExcitationGenerator:Ultrasonic Digital Generator
Screen:LCD DisplayFrequency Range:+-500hz
High Light:

ultrasonic power generator


high power ultrasonic generator

Digital Ultrasonic Frequency Welding Generator for Home textile welding

This ultrasonic generator can work continuously for a long time, which is aimed at ultrasonic mask machine, ultrasonic bag making machine, ultrasonic paper cup welding machine, ultrasonic welding of female baby hygiene products production equipment, water washing standard cutting and slitting equipment for garment industry, zipper ultrasonic welding and other industries.


Frequency range+500hz
Operating temperature≤40℃
Amplitude adjust10%~100%
CircuitDigital,separate excitation

Ultrasonic welding is widely used in the home textile industry, and is often used instead of needle and suture. Therefore, the application of ultrasonic welding in the home textile industry is often 8-hour long vibration mode. Compared with traditional needle stitching, the advantages of ultrasonic non-woven fabric welding machine:

1. Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need to change needles frequently. There is no disconnection of traditional thread sewing. Ultrasonic welding can also neatly cut and seal textiles. At the same time, it also plays a decorative role. It has strong adhesion and can achieve waterproof effects. The embossing is clear. The surface has a three-dimensional relief effect. The working speed is fast.

2. Using ultrasonic and special ultrasonic steel mold processing, the sealed edges do not crack, do not hurt the edges of the cloth, and there are no burrs or curling.

3. It does not require preheating during ultrasonic welding operation and can be operated continuously.

4. Easy to operate, there is not much difference with the traditional sewing machine operation method.The ultrasonic steel wheel is well placed on the ultrasonic welding machine and debugged by the ultrasonic engineer.

After success, ordinary sewing workers can operate with extremely high stability.

5. Ultrasonic welding, low cost, and ultrasonic can greatly shorten the processing time, the entire process can be completed within a few milliseconds, 5 to 6 times faster than traditional machines, high efficiency.

Why RPS-SONIC Generator:

1. Each power will be tested by Specifytransducer .

2. All generatorwith one year warranty.

3. Specialized in high power ultrasonicfor more than ten years

4. Every generatorwith 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation


(1) Automatic frequency modulation:

This characteristic is the basic characteristic of the ultrasonic system, and the accuracy of frequency is directly related to the normal use of equipment.

(2) Digital Amplitude Settings:

Amplitude 1%~100% adjustable, digital adjustment to ensure the unity of each start.

(3) Soft start:

In order to make the ultrasonic system run perfectly, users need to choose the appropriate soft start time according to the characteristics of the mould to reduce the impact of the generator on the transducer. For the Hard-to-start die, the starting speed of the die can be adjusted.

(4) Die matching:

Die matching is to match the frequency of the equipment according to the low amplitude (about 10%) so that the equipment has a good starting frequency in normal operation.

(5) Welding time can be adjusted:

2000H series of ultrasonic generator built-in time counting (resolution 10ms), users can set the parameters according to need to ensure the unity of each welding.

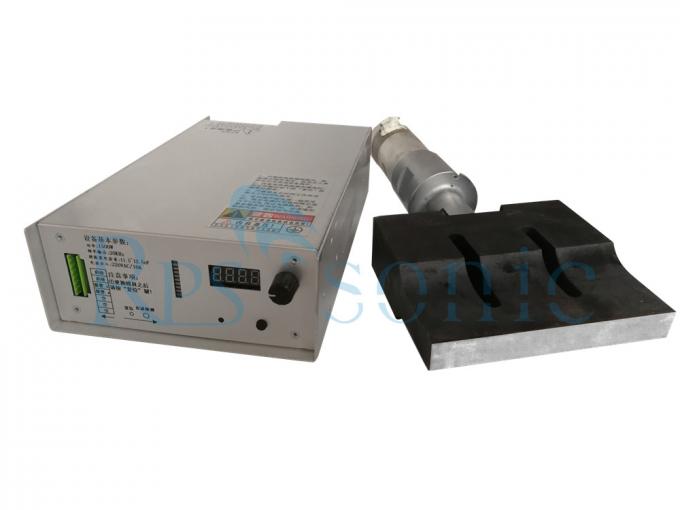

Separate Excitation Ultrasonic Frequency Generator Home Textile Industry Use 0

  • Previous:
  • Next:

  • Previous:
  • Next:
  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
