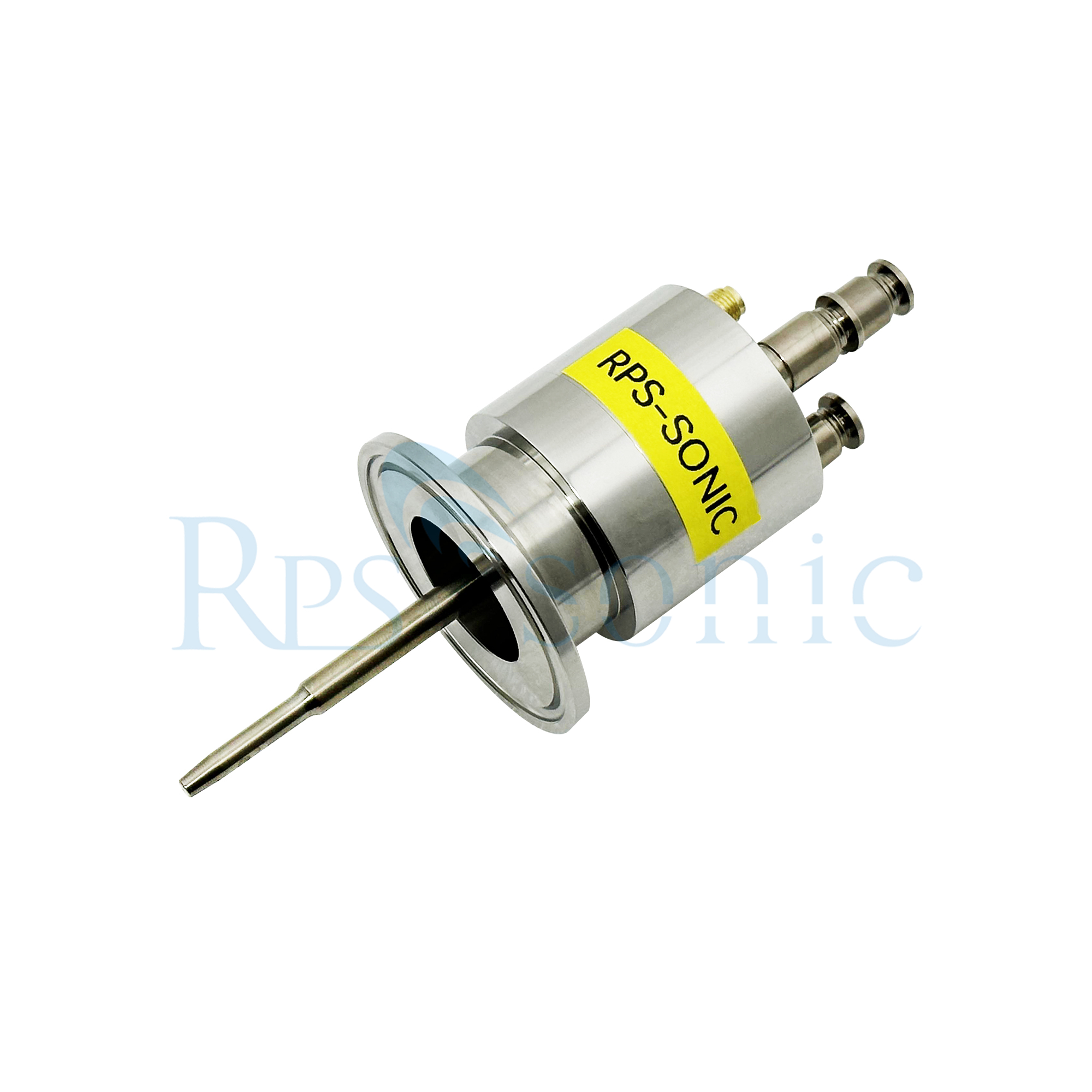

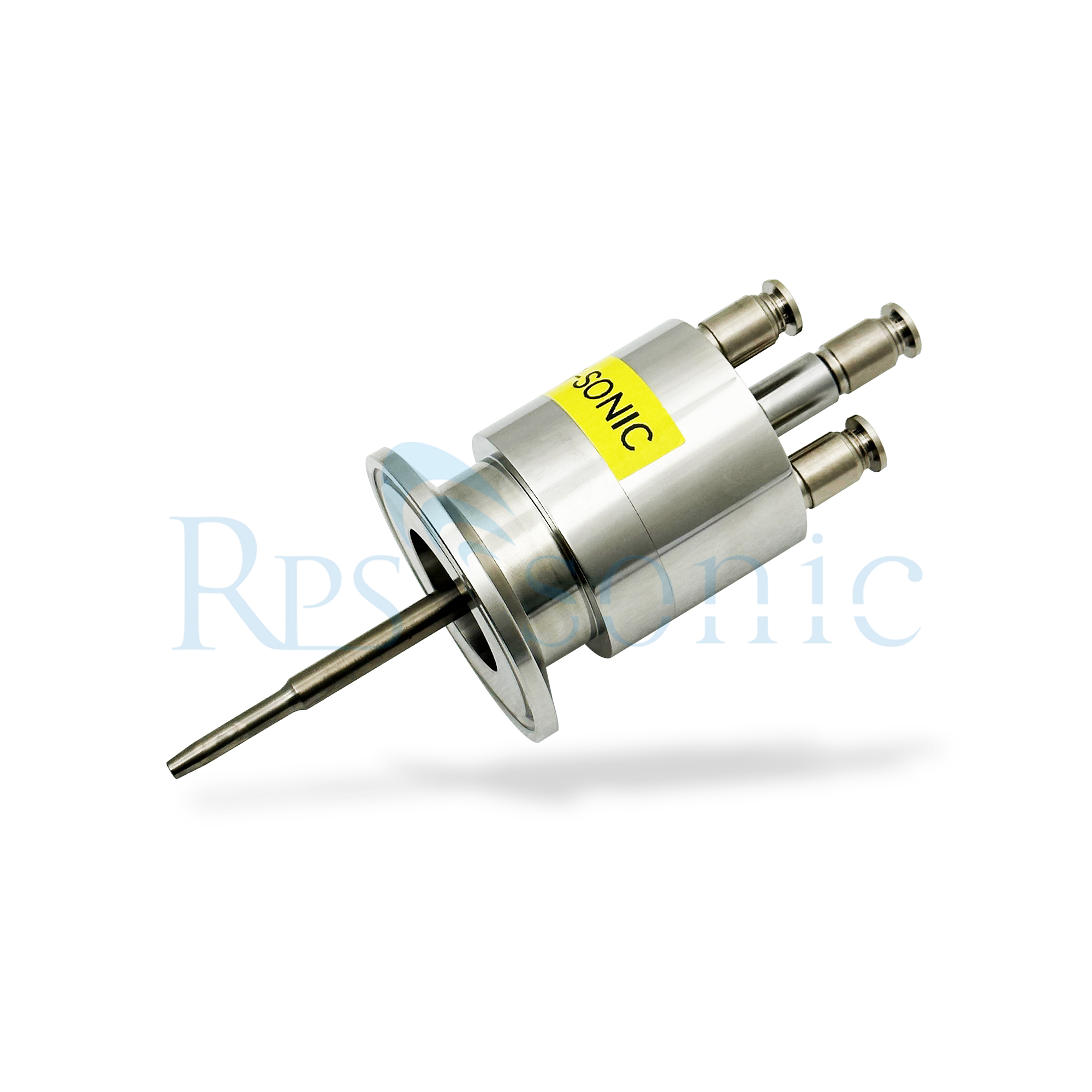

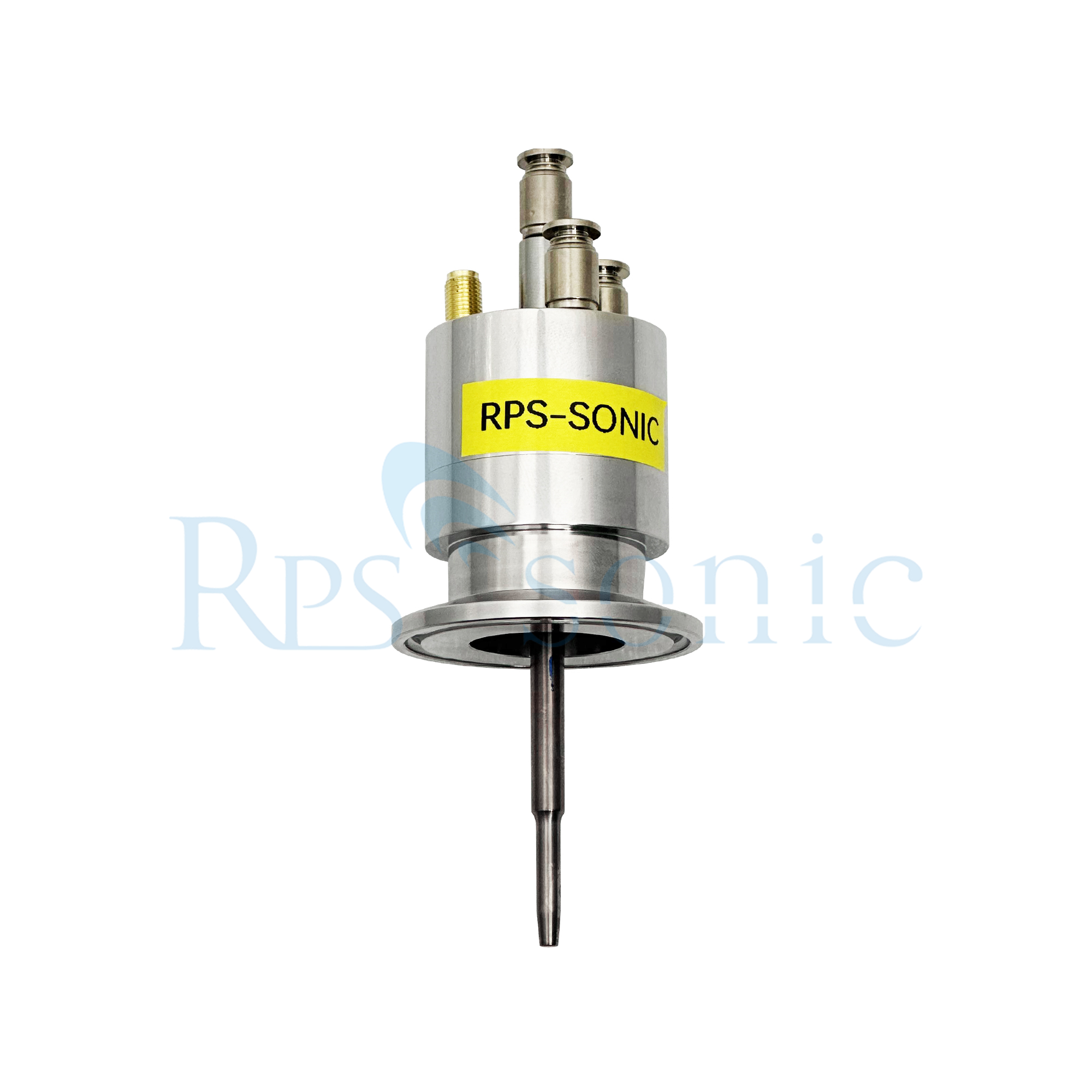

60KHz ultrasonic spray nozzle for coating organic silane

60KHz ultrasonic spray nozzle for coating organic silane

short description:

Ultrasonic spraying technology is efficient and uniform, and the K series ultrasonic atomizing nozzles have a wide spray width and are suitable for large-area spraying. Using ultrasonic atomization technology, the spray is sprayed onto the substrate in a fan shape, and can be used in parallel to achieve wider spraying. High raw material utilization, precise control of coating thickness, suitable for a variety of spraying processes.
Product Detail
FAQ
Product Tags

60KHz ultrasonic spray nozzle for coating organic silane



Paramater

Item Parameter
Frequency 60Khz
Power 10~30w
FLOW RATE (ml/min) 1~10ml/min
Spray width 15mm
Solution utilization above 98%



60kHz ultrasonic atomization spray equipment is a high-precision equipment that uses 60kHz ultrasonic frequency to atomize and spray liquid. It is widely used in industrial spraying, surface treatment, precision coating and other fields.
Ultrasonic atomization spraying is an advanced process that uses ultrasonic technology to convert liquid into tiny droplets and spray them evenly onto the target surface. It uses high-frequency ultrasonic vibration to atomize the liquid into micron-level or even nano-level droplets, and then sprays the droplets evenly onto the surface of the workpiece through airflow or electrostatic adsorption. This technology is widely used in industry, medical treatment, electronics, new energy and other fields.

Main features

1. High-frequency atomization:

The 60kHz high-frequency ultrasonic vibration atomizes the liquid into micron-level or even nano-level droplets, and the atomization effect is delicate and uniform.

2. High-precision spraying:

It is suitable for scenes with high requirements for coating thickness and uniformity, and can achieve ultra-thin and uniform coatings.

3. Energy saving and environmental protection:

Ultrasonic atomization has low energy consumption, and no high-pressure gas is required during the atomization process, reducing energy consumption and environmental pollution.

4. Non-contact spraying:

There is no need to directly contact the workpiece during the atomization spraying process, which is suitable for handling precision or vulnerable parts.

5. Strong controllability:

The droplet size and spraying amount can be accurately controlled by adjusting the frequency, amplitude and liquid flow rate.

Application fields

1. Industrial spraying:

Used for coating spraying of precision parts such as semiconductors, electronic components, optical devices, etc.

2. Surface treatment:

Spraying anti-corrosion, anti-rust, and wear-resistant coatings on the surfaces of metals, glass, ceramics, etc.

3. Medical equipment:

Used for antibacterial coatings or drug coatings on the surface of medical devices.

4. New energy field:

Spraying functional coatings on new energy materials such as lithium battery electrode materials and fuel cell membranes.

5. 3D printing and additive manufacturing:

Used for material spraying or surface post-treatment in 3D printing.

  • Previous:
  • Next:

    • 1.What's the horn material?

    It’s made by titanium alloy.

    2.What’s the frequency can you provide of the ultrasonic sprayer?

    We have 20kHz,40kHz,50kHz,60kHz,100kHz.

    3.What different types of nozzles do you have?

    Wide type/Gathering type/long mouth type/Scattering type

    4.Can the device work continuously?

     Yes ,it can work 24hours continue as long as cooling measures are taken.

    1. 5.What cooling measures can be used?

    Air cooling by Air compressor.

    1. 6. What's the time of delivery?

    For spray nozzle system 7-14 work days,for automatic machine20-30 working days.

    7.Are you manufacturer or trader?

    Yes,We manufacturer all kinds ultrasonic equipment.Welcome to visit us.

    8.What's the warranty of your ultrasonic spray coating equipment?

     All generatornt one year warranty.

    9.How can you guarantee the production quality?

    We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each  ultrasonic sprayer before the delivery.
