20khz Ultrasonic PCB Board of Digital Ultrasonic Generator Driver Circuit Board

short description:

Place of Origin: China
Brand Name: Rps-sonic
Certification: CE
Model Number: HC-PCB2000E

  • Frequency: 20khz
  • Power: 2000w
  • Amplitude Adjust: 10%~100%
  • Voltage: 110V/220V
  • Product Detail


    Product Tags

    20khz Ultrasonic PCB Board of Digital Ultrasonic Generator Driver Circuit Board

    Whats ultrasonic generator?

    Ultrasonic generator, usually called ultrasonic power supply. Its function is to convert our mains (220V 110V or 380V, 50 or 60Hz) into a high frequency AC signal that matches the ultrasonic transducer. From the form of the amplifying circuit, a linear amplifying circuit and a switching power supply circuit can be used, and the high-power ultrasonic power source generally adopts a circuit form of a switching power supply in terms of conversion efficiency. Linear power supplies also have their own application range, which has the advantage that the circuit can be not strictly required.

    Matching allows the operating frequency to change continuously and continuously. From the current situation in the ultrasound industry, ultrasonic generators are mainly divided into self-excited and separate excited power supply.

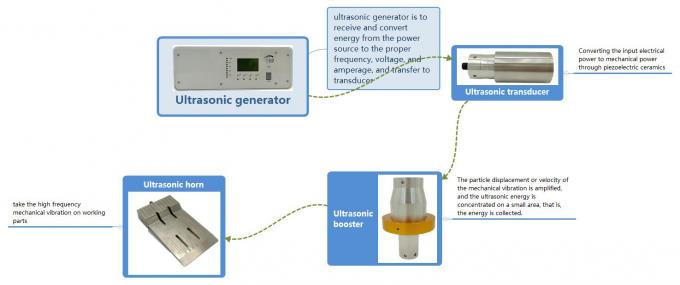

    The principle of the ultrasonic generator is to first generate a signal of a specific frequency by a signal generator, which may be a sinusoidal signal or a pulse signal. This specific frequency is the frequency of the transducer, and is generally applied to ultrasonic in an ultrasonic device. The frequency is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz,70khz, 100KHz.20khz Digital Generator Driver Ultrasonic Pcb Circuit Board 0

    Our ultrasonic generator PCB can be used for non-woven bag making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, plastic welding machine, plastic bag making machine,etc.

    Application: Plastic, Toys, Electronic products, Non Woven products, Shore cover, Surgical products, lable, paper cups, mask, etc.

    Our ultrasonic generator PCB advantages

    1. DDS and PID high precision frequency control core.

    2. Electric constant amplitude control system.

    3. Welding amplitude setting range 0% – 100% by 1%.

    4. Soft start, setting range 0-999MS, setprecison 1MS.

    5. Three self-checking modes.

    6. Pressure trigger/Time/Energy welding modes.

    7. Six protections.

    8. Less space, total weight 1.3KG


    Ultrasonic PCB Board of Digital Ultrasonic Generator Driver Circuit Board

    Item Parameter
    Power 2000In max
    Frequency range ±1000hz
    Operating temperature ≤40℃
    Frequency 15~40Khz
    Amplitude adjust 10%~100%
    Voltage 110V/220V
    Circuit Digital,separate excitation

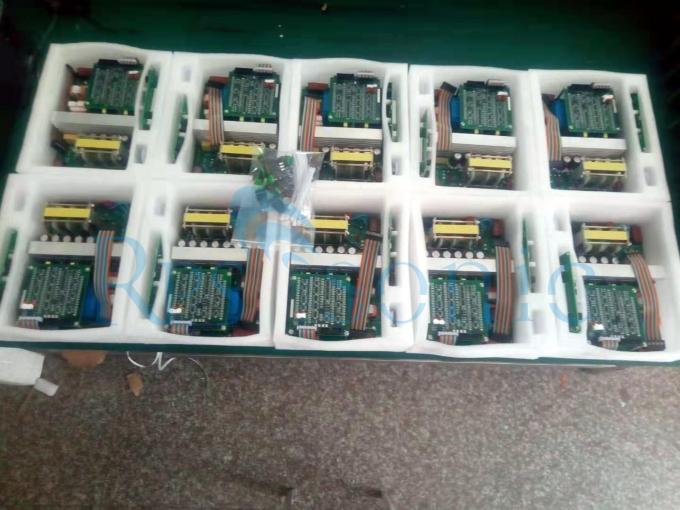

    20khz Digital Generator Driver Ultrasonic Pcb Circuit Board 1

    Why RPS-SONIC Generator:

    1. Each power will be tested by Specify transducer .

    2. All generator with one year warranty.

    3. Specialized in high power ultrasonic for more than ten years

    4. Every generator with 24hours old testing before shipment.

    5. Good packing, no packing problem during the 10 years exporting business.

    6. Every customer will get purchase records and there are certain rewards after accumulation

    Service and shipment:

    • Warranty one year for transducer.
    • You can contact us for technical inquiry any time.
    • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
    • We supply customized products service for small quantity also.
    • Shipment by FED-EX /DHL/UPS/TNT
