50Khz Industrial Scattering Type Atomized Ultrasonic Spraying Nozzlefor Paint Spraying

50Khz 100w Industrial Atomizer Ultrasonic Scattering Type Atomized Spraying Nozzle

Paramater

Description

Ultrasonic spray (atomization) is the use of ultrasonic energy to disperse water or liquid to form tiny particles of several microns to more than 100 microns, which are used for humidifying air, liquid granulation, mixing, promoting chemical reactions, spraying, etc. Purpose.

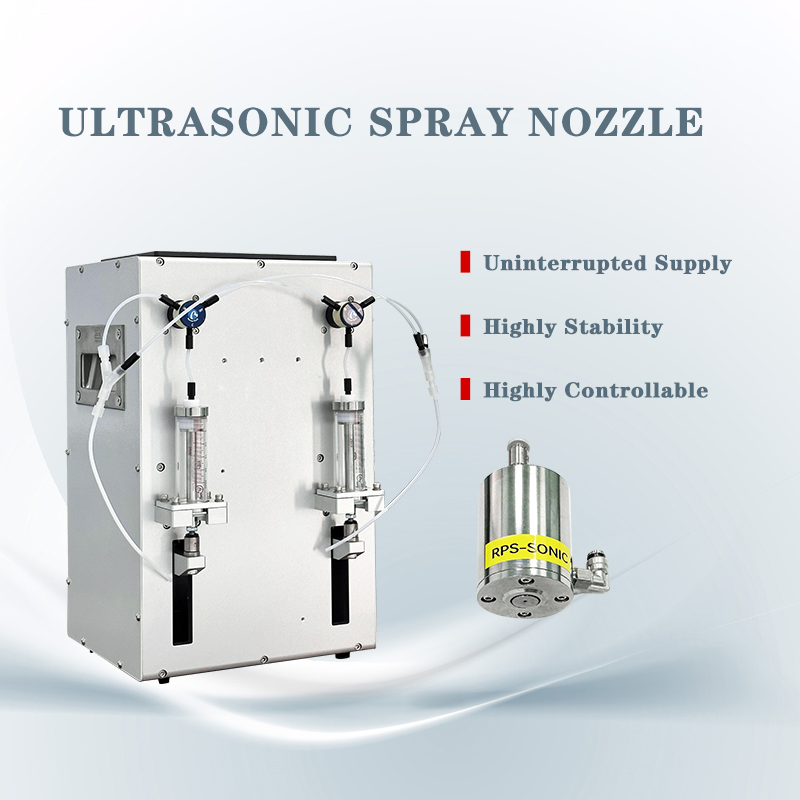

Ultrasonic sprayer equipment, the power source adopts high-power ultrasonic transducer, and the whole machine is composed of ultrasonic transducer, horn, atomizing head, and special ultrasonic generator. The transducer drives the atomizing head to vibrate at high frequency, and applies ultrasonic force to water or other liquids to break up the flowing liquid into fine particles and spray them into the air, so as to achieve the purpose of spraying (atomization). With its unique gentle spraying characteristics, the device greatly reduces back spraying, thereby reducing costs and pollution to the surrounding air. At the same time, this new technology also expands more application fields, such as when spraying at low flow rates is required. ideal. In addition, for substrate spraying, atomizing humidification, spray drying, web spraying and other industrial and research and development applications, the sprayer equipment will also produce better results than other technologies.

The nebulizer equipment launched by RPS-SONIC, the power source adopts high-power ultrasonic transducer, and the whole machine is composed of ultrasonic transducer, horn, atomizing head, and special ultrasonic generator. The transducer drives the atomizing head to vibrate at high frequency, and applies ultrasonic force to water or other liquids to break up the flowing liquid into fine particles and spray them into the air, so as to achieve the purpose of spraying (atomization). With its unique gentle spraying characteristics, the device greatly reduces back spraying, thereby reducing costs and pollution to the surrounding air. At the same time, this new technology also expands more application fields, such as when spraying at low flow rates is required. ideal. In addition, for substrate spraying, atomizing humidification, spray drying, web spraying and other industrial and research and development applications, the sprayer equipment will also produce better results than other technologies.

Advantages of sprayer equipment

1. For precise spray applications, the spray shape is very easy to manipulate and form.

2. It can reduce waste and air pollution caused by back spraying, save energy and protect the environment.

3. Made of high-performance titanium alloy and stainless steel.

4. No pressure, no noise, no nozzle wear and clogging problems.

5. Low energy consumption and high atomization efficiency.

6. There is no limit to the medium, even sewage, chemical liquid, oil mucus can be atomized.

7. The amount of atomization can be adjusted at will, which is suitable for application in the industrial field. Through the combination, the amount of atomization can meet any requirements of the user.

• Previous:Quality Inspection for High Power Ultra Sonicator Homogenizer with Titanium Alloy Probe
• Next:Hot Sale for Laboratory Non-Contact Ultrasonic Pulverizer Eliminates The Risk of Cross Contamination of Samples

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
