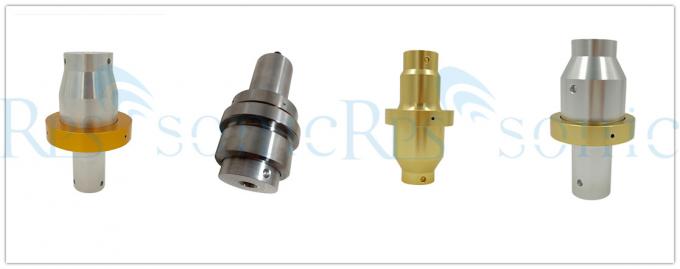

Branson replaced ultrasonic booster for ultrasonic transducer Amplifier

What’s ultrasonic booster?

Ultrasonic booster, the important component of the ultrasonic vibration system is to amplify the mass displacement or velocity of the mechanical vibration and concentrate the ultrasonic energy on a small area. Ultrasonic booster is an important part of the ultrasonic vibration system. Its main function in the vibration system is to amplify the mass displacement or velocity of the mechanical vibration, and concentrate the ultrasonic energy on a small area, that is, the energy is collected. Also known as ultrasonic shift levers or ultrasonic concentrators.

Products Details

Ultrasonic booster, as the name suggests, are functional components that match the amplitude of ultrasonic vibrations with ultrasonic transducers. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration ratio, improve the efficiency, improve the mechanical quality factor, enhance the heat resistance, expand the temperature range, and prolong the service life of the transducer. The ultrasonic transducer adjusts the load matching between the transducer and the ultrasonic horn by installing a booster, which reduces the resonance impedance and makes it work at the resonant frequency to improve the electro-acoustic conversion efficiency. Reduces the heat generation of the ultrasonic transducer and improves the service life.

The Ultrasonic Booster is like the gear in a car, where as the lowest is first gear and so forward. This also means that the higher ultrasonic booster you put on the more power is needed behind to start it, so even if the ultrasonic booster can take more gain (higher ratio), if you ultrasonic generator is not powerfully enough you will not be able to start it up and the Ultrasonic generator will go into overload.
