20Khz industrial ultrasonic homogenizer ultrasonic sonochemistry

short description:

short description:

Ultrasonic homogenization uses the cavitation and other physical effects of ultrasonic waves in liquids to achieve homogenization. Physical action refers to the fact that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and crush the particles in the liquid. The main reason is that the collision between liquids, microphase flow and shock waves lead to the change of particle surface morphology. Cavitation means that under the action of ultrasonic waves, the liquid generates cavities, that is, small bubbles, in places with weaker intensity. The small bubbles pulsate with the ultrasonic waves, and within one sound cycle, the cavities will collapse. Ultrasonic cavitation also produces strong mechanical effects, producing fast jets or acoustic impulses near solid interfaces, and powerful shock waves in liquids.


  • Frequency: 20Khz
  • Power: 3000w
  • Horn material: Titanium alloy
  • Generator: Digital
  • Weight: 25kg
  • Voltage: 220v 50/60Hz
  • Horn size: Customized
  • Package: Wooden and carton
  • After-sale service: Online video
  • Warranty: 1 year

    Product Detail

    FAQ

    Product Tags

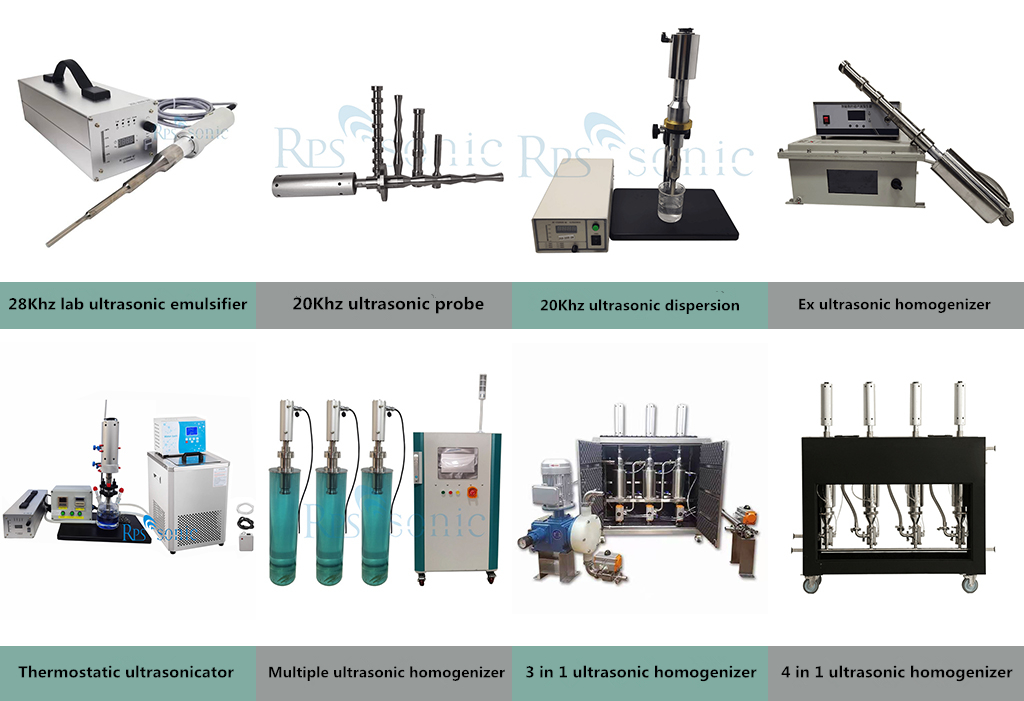

    20Khz industrial ultrasonic homogenizer ultrasonic sonochemistry for extraction

    2_副本

    Parameter

    ModelSONO20-1000SONO20-2000SONO15-3000SONO20-3000
    Frequency20±0.5 KHz20±0.5 KHz15±0.5 KHz20±0.5 KHz
    Power1000 W2000 W3000 W3000 W
    Voltage220/110V220/110V220/110V220/110V
    Temperature300 ℃300 ℃300 ℃300 ℃
    Pressure35 MPa35 MPa35 MPa35 MPa
    Intensity of sound20 W/cm²40 W/cm²60 W/cm²60 W/cm²
    Max Capacity10 L/Min15 L/Min20 L/Min20 L/Min
    Tip Head MaterialTitanium AlloyTitanium AlloyTitanium AlloyTitanium Alloy

    Applications include emulsification, cell disruption, sample disaggregation, disintegration, homogenization and critical cleaning

    • Converts voltage to high frequency electrical energy

    Energy is transmitted to the piezoelectrical transducer within the converter, where it is changed to mechanical vibrations. The vibrations are intensified by the titanium probe, creating pressure waves in the liquid. This action forms millions of microscopic cavities which expand during the negative pressure excursion and implode violently during the positive excursion. This cavitation produces the powerful shearing action at the probe tip and causes the molecules in the liquid to become intensely agitated.



    Ideal for disruption and sample preparation

    • Frequency: 20 kHz
    • Process for 20L ~50L
    • Automatic tuning circuitry eliminates the need for constant adjustments
    • Continues 8 hours
    • Variable power output control
    • 3-year conditional warranty

    Additional features include digital watt meter, thumb actuated pulsar and variable power output control. Unit is shipped complete and ready for operation with a 3-mm titanium probe tool kit and instruction manual.

    Ultrasonic homogenizer also applied in:

    • Cell disrupter (extraction of plant substances, disinfecting, enzyme deactivation)

    • Therapeutic ultrasound, i.e. induction of thermolysis in tissues (cancer treatment)

    • Decrease of reaction time and/or increase of yield

    • Use of less forcing conditions e.g. lower reaction temperature

    • Possible switching of reaction pathway

    • Use of less or avoidance of phase transfer catalysts

    • Degassing forces reactions with gaseous products

    • Use of crude or technical reagents

    • Activation of metals and solids

    • Reduction of any induction period

    • Enhancement of the reactivity of reagents or catalysts

    • Generation of useful reactive species

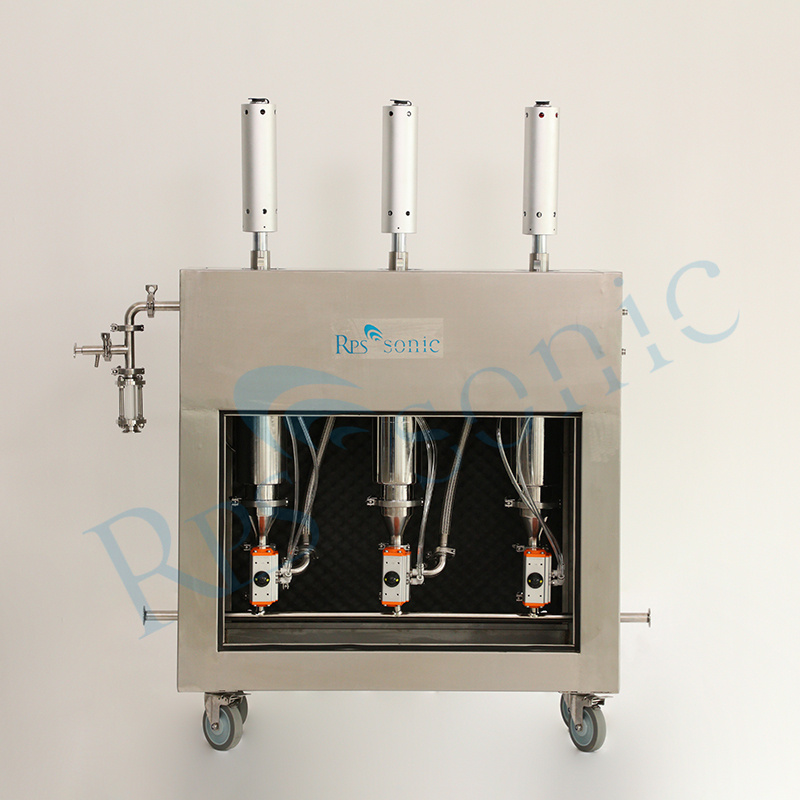

    If you want bigger process capacity,we can customise ultrasonic homogenizer for serial circulation processing,as shown below:

    ultrasonic homogenizerIn addition to industrial-grade equipment, we also provide experimental-grade ultrasonic emulsification equipment, which can be tested with experimental-grade equipment before large-scale processing.

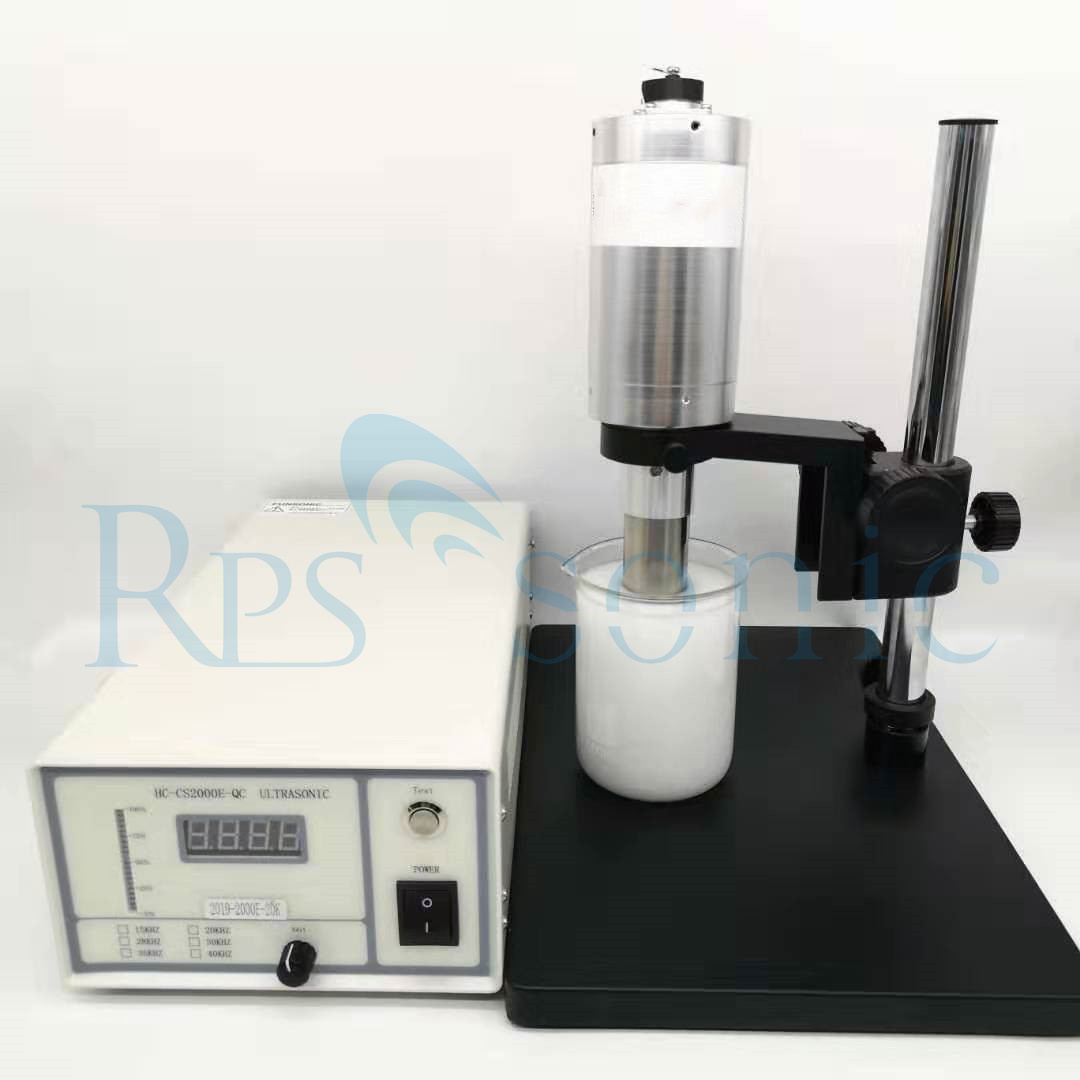

    Lab type




  • Previous:
  • Next:


  • Previous:
  • Next:
  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
