20Khz Ultrasonic cable cleaning and stripping machine for Insulated cable stripping

20Khz 500w Ultrasonic cable cleaning and stripping machine for Insulated cable stripping

Parameter

Description

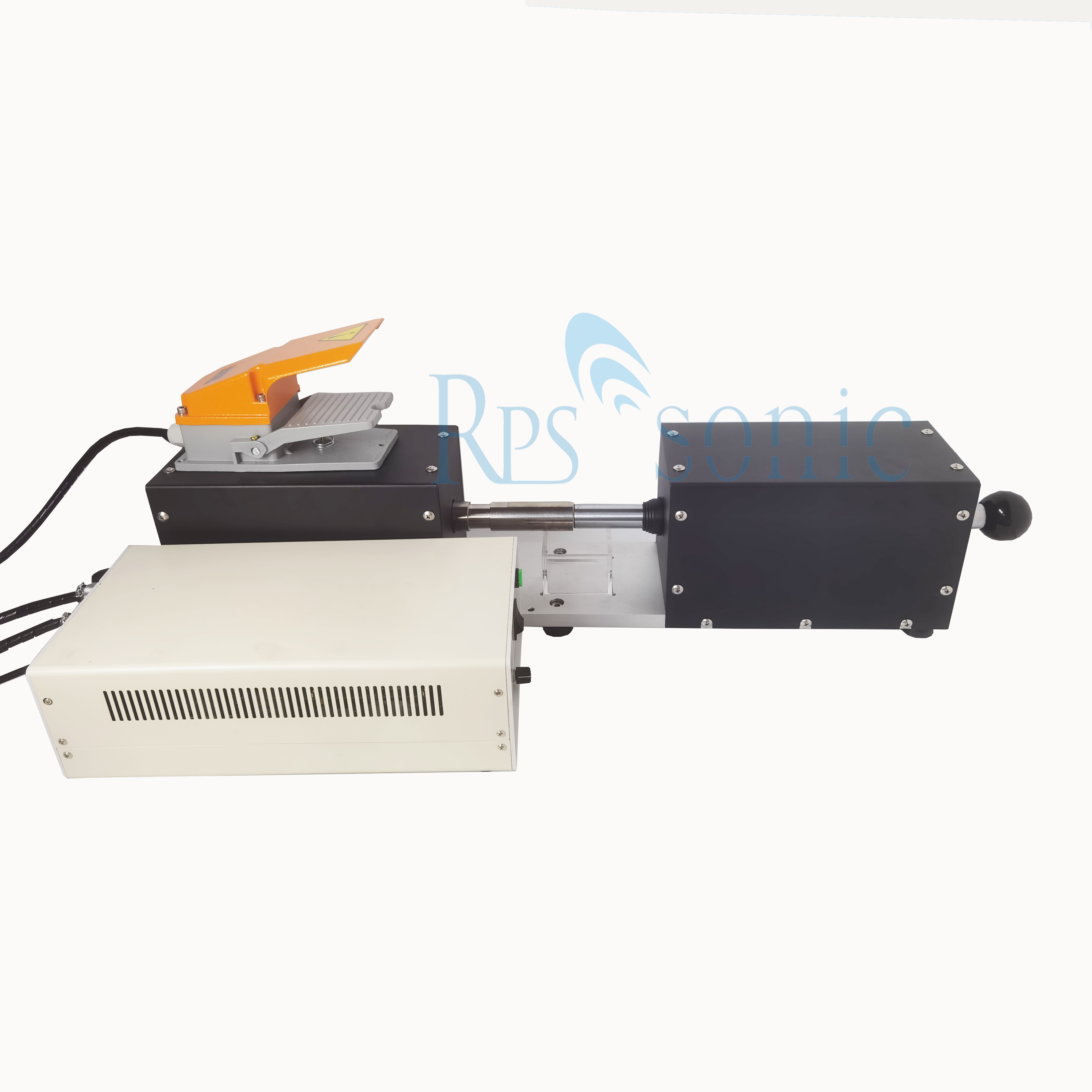

The ultrasonic temperature-controlled armored cable stripping machine consists of four parts: ultrasonic generator, ultrasonic vibration system, transmission equipment and frame.

The ultrasonic generator (that is, the driving power supply) is composed of a rectifier circuit, an oscillation circuit, a feedback circuit, a tracking circuit, a control circuit, a power amplifier circuit, a matching circuit, etc. Ultrasonic transducer in the wire mechanism. The power of the ultrasonic generator is adjustable to adapt to different working conditions. The generator is also integrated with a timing controller to control the ultrasonic vibration time and intermittent time of the wire stripping machine.

●Compared with the traditional manual stripping method, the ultrasonic cable stripping machine has the characteristics of high efficiency, clean powder, no damage to the internal cable core, and environmental protection.

C equipment can be applied to 1-30mm diameter,-core to multi-core mineral insulated cables. Ultrasonic mineral cable powder cleaning and stripping machine solves the problem of mineral cable powder cleaning.

●Ultrasonic armored cable powder cleaning and stripping machine adopts a vertical structure, which greatly reduces the volume of the stripping machine and consolidates the stability of the work. (During operation, the cable faces downwards, which is easy to operate, facilitates powder collection, reduces the damage to the operator due to the diffusion of dust during the operation, and can be applied to cables of different diameters.(It is convenient for users to use, reduces the production cost of the stripping process and improves economic efficiency.

Features

1. Foot pedal operation;

2. Very easy to set up and operate;

3. It can peel off 25mm metal package shell in one job;

4. The stripping machine has a compact design;

5. Reliable work, high efficiency;

6. Low power consumption;

7. Fast speed.

Application

Mineral insulated cables have been widely used in high-rise buildings, petrochemicals, airports, tunnels, ships, offshore oil platforms, aerospace, iron and steel metallurgy, shopping malls, parking lots and other applications to mineral insulated cables.

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
