Alloy Horn 35khz 500w Handheld Ultrasonic Welder

Description

Frequency:35khzHorn:Alloy Or Titanium
Power:500wName:35khz
High Light:

500w handheld ultrasonic welder

,

35khz handheld ultrasonic welder

,

35khz ultrasonic hand welder

35kHz Ultrasonic Hand Welder Portable Ultrasonic Brass Inserts Equipment

Whats the principle of Ultrasonic plastic welding?

When ultrasonic act on the thermoplastic plastic contact surface, high-frequency vibrations of tens of thousands of times per second. This high-frequency vibration reaches a certain amplitude, and the ultrasonic energy is transmitted to the weld zone through the upper weldment, because the weld zone have a large acoustic resistance, so local high temperatures are generated. Moreover, due to the poor thermal conductivity of the plastic, it can not be dissipated in time and gather in the weld zone, so that the contact faces of the two plastics melt rapidly, and after a certain pressure, they are integrated into one. When the ultrasonic wave stops, let the pressure last for a few seconds to solidify it, thus forming a strong molecular chain for welding purposes, the welding strength can be close to the strength of the raw material. The quality of ultrasonic plastic welding depends on the amplitude of the transducer welding head, the applied pressure and the welding time. The welding time and the welding head pressure can be adjusted. The amplitude is determined by the transducer and the horn. These three quantities have a suitable value for each other. When the energy exceeds the appropriate value, the melting amount of the plastic is large, and the welding material is easily deformed; if the energy is small, the welding is difficult, and the applied pressure cannot be increased. This optimum pressure is the product of the length of the side of the welded portion and the optimum pressure per 1 mm of the edge. Ultrasonic welding is a high-tech technology for welding thermoplastic technology. Various thermoplastic rubber parts can be processed by ultrasonic welding without adding solvent, adhesive or other auxiliary products. The advantage is to increase productivity and reduce cost. improve product quality.

Ultrasonic plastic welding principle: The generator generates 20KHZ, (or 15KHZ) high-voltage, high-frequency signal, through the conversion system, converts the signal into high-frequency mechanical vibration, which is applied to the workpiece of plastic products, through the working surface and the intrinsic intermolecular The friction causes the temperature to be transmitted to the interface to rise. When the temperature reaches the melting point of the workpiece itself, the workpiece welding port is rapidly melted, and then filled in the gap between the interfaces. When the vibration stops, the workpiece is simultaneously cooled and fixed under a certain pressure. , to achieve the perfect welding.

Parameter

ItemParameterAdvantage:Application
28Khz ultrasonic hand welder

Straight type

▪ 28Khz 800W

▪ Digital generator

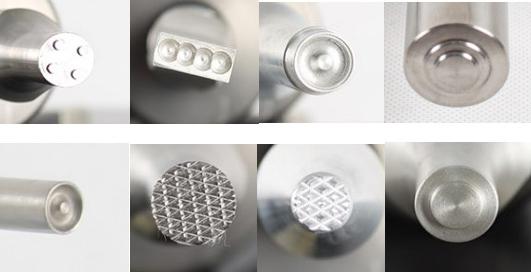

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate.

2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it’d using life.

3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate.

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max.

Straight type suit for both hand /machine operate.

Gun type suit for hand operate.

28Khz ultrasonic hand welder

Gun type

35Khz ultrasonic hand welder

Straight type

▪ 35Khz 500W

▪ Digital generator

▪ Horn customized

▪ Aluminum alloy&Steel & Titanium alloy

▪ Power Supply: 220v 50/60HZ

PP PVC Fabric woven PE ABS

PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max.

Straight type suit for both hand /machine operate.

Gun type suit for hand operate.

35Khz ultrasonic hand welder

Gun type

For better application , it is better share all the material information with me, the material, thickness, operate way, speed requirements before order .

We also supply 20Khz 40Khz ultrasonic hand-weld welder.

The hand-held sonotrode for ultrasonic welding (bonding) is light and handy, suitable for left- or right-handed operation. It is equipped with simple air-cooling system, which prevents the device from heating and the palm from sweating and this way facilitates the control and precise operation.

The ultrasonic hand-held sonotrode is equipped with an ultrasonic generator type Sooonic HpW. The horn and the handle are made of high-quality materials, that ensure long life and smooth operation.

Basic characteristics:

Speed of welding: approximately 5 seconds, depending on the material and the required results.

The ultrasonic technology ensures strong and high-quality welding between the assembled parts without using additional materials.

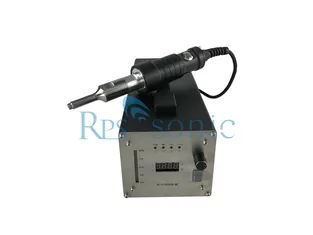

Product Specifications : 1 – hand welder can be applied to a single point welding, screw implants , riveting .2 – Portable design , save space , easy to operate.3 – can be used independently , but also can be used with automatic peripheral equipment .4 – There are lessons device models , especially for rhinestones / PC drill mount in haute couture processing .5 – Ultrasound output size can be adjusted .Alloy Horn 35khz 500w Handheld Ultrasonic Welder 0

Alloy Horn 35khz 500w Handheld Ultrasonic Welder 1


  • Previous:
  • Next:


  • Previous:
  • Next:
  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
