Manufactur standard Industrial Ultrasonic Knife - 1Khz – 5Mhz Ultrasonic Welding Tool Automatic Ultrasonic Impedance Analyzer – Powersonic

Parameter

How to balance an ultrasonic transducer by ultrasonic impedence analyzer ?

Piezoelectric ceramic ultrasonic transducer is the core component of ultrasonic products. The quality of the quality star directly affects the performance of the entire ultrasonic equipment. Our transducers are strictly tested by the piezoelectric ceramic evaluation system. The impedance analyzer can be used to evaluate piezoelectric ceramic sheets, piezoelectric transducers, and entire vibration systems (transducers + horns) and other devices.

1. Who should buy impedence analyzer?

The one who use ultrasonic equipment frequencly should buy the impedence analyzer.

2. What’s the function impedence analyzer?

It can help us to get all parameter of the ultrasonic component.

3. Does it helpful to our producing?

Yes, it can help find the problem fast, so that you will not be baffled when your equipment not work.

4. Does the ultrasonic impedence analyzer suit for all ultrasonic area?

Yes, it can work for ultrasonic compoents in any area, like ultrasonic caleaning ,ultrasonic welding ,ultrasonic sonochemistry, ultrasonic cutting, ultraosnic sealing.

5. What’s the uselife of this equipment?

8~10 years

Graphics

The 1Khz ~5Mhz Ultrasonic Transducer And Horn Analyzer Trz provides five kinds of coordinate characteristic diagrams, and the logarithmic characteristic diagram has important significance for the detection of piezoelectric devices. The vibration performance of a piezoelectric vibrator or a vibrating system can be directly judged by a logarithmic graph, which is relatively intuitive and practical.

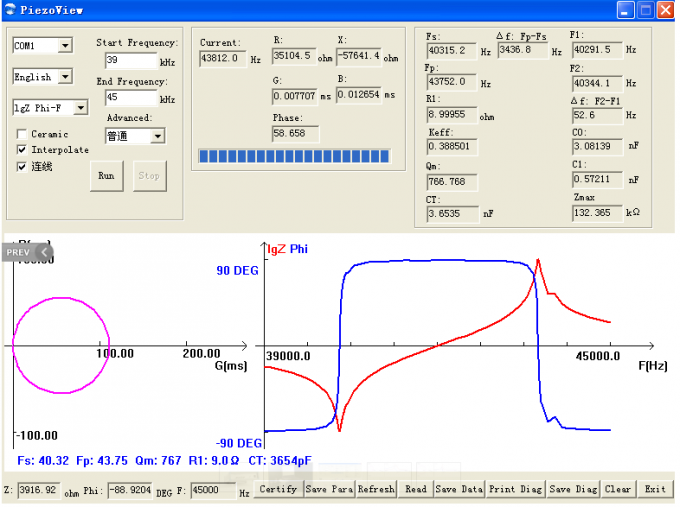

Under normal circumstances, the admittance circle and the conductance curve are as shown in the following figure.

The admittance circle is a single circle, and the logarithmic graph has only a pair of minimum and maximum values:

Under abnormal conditions, the admittance circle and the conductance curve are as shown in the figure below. There are multiple parasitic small circles on the admittance chart. The logarithmic graph has many pairs of minimum and maximum values:

Why RPS-SONIC :

1. Strictly checking before shipment.

2. Impedence analysiswith one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every analysis can make acustomized home page with your logos.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation

Service and shipment

• Warranty one year for transducer.
• You can contact us for technical inquiry any time.
• We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
• We supply customized products service for small quantity also.
• Shipment by FED-EX /DHL/UPS/TNT
