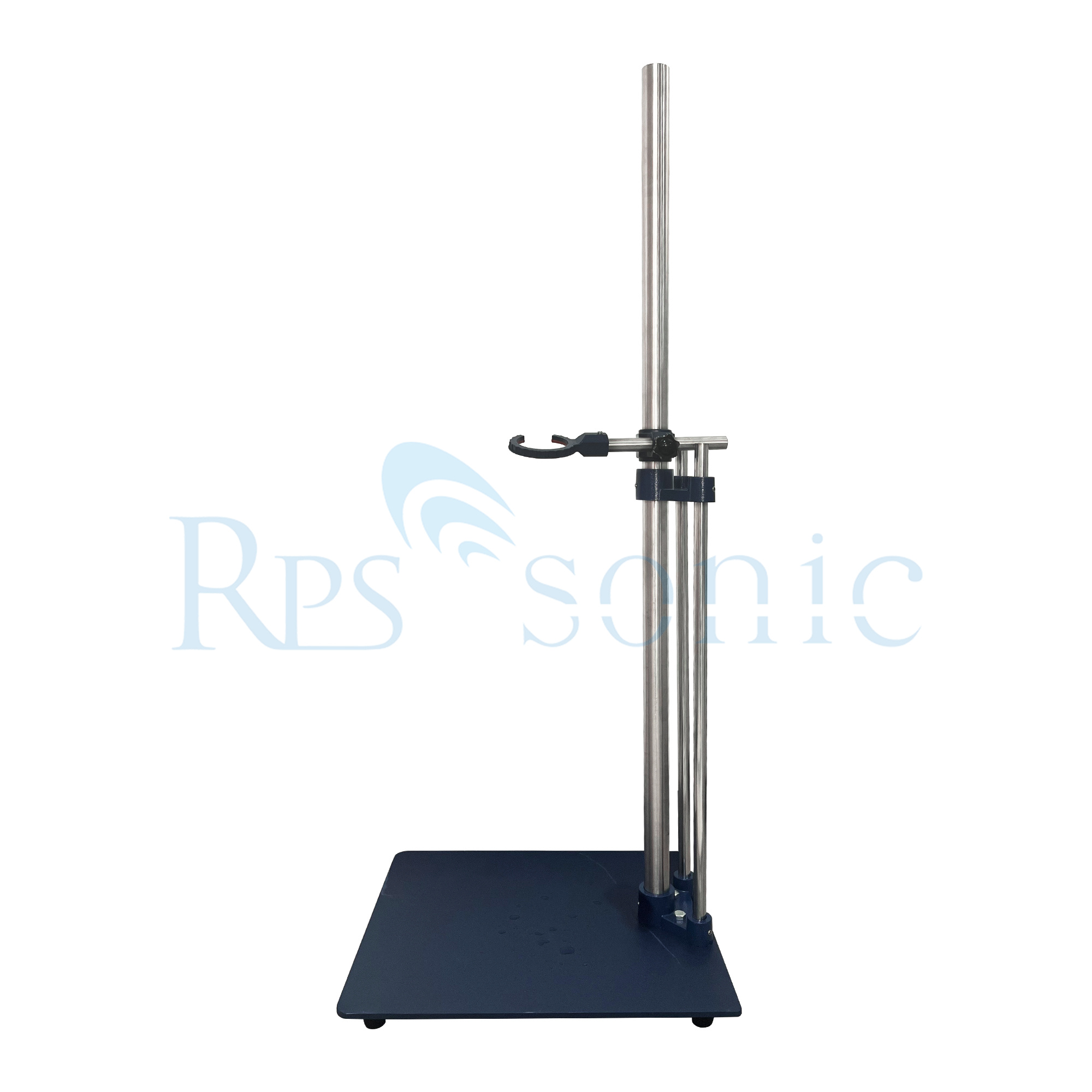

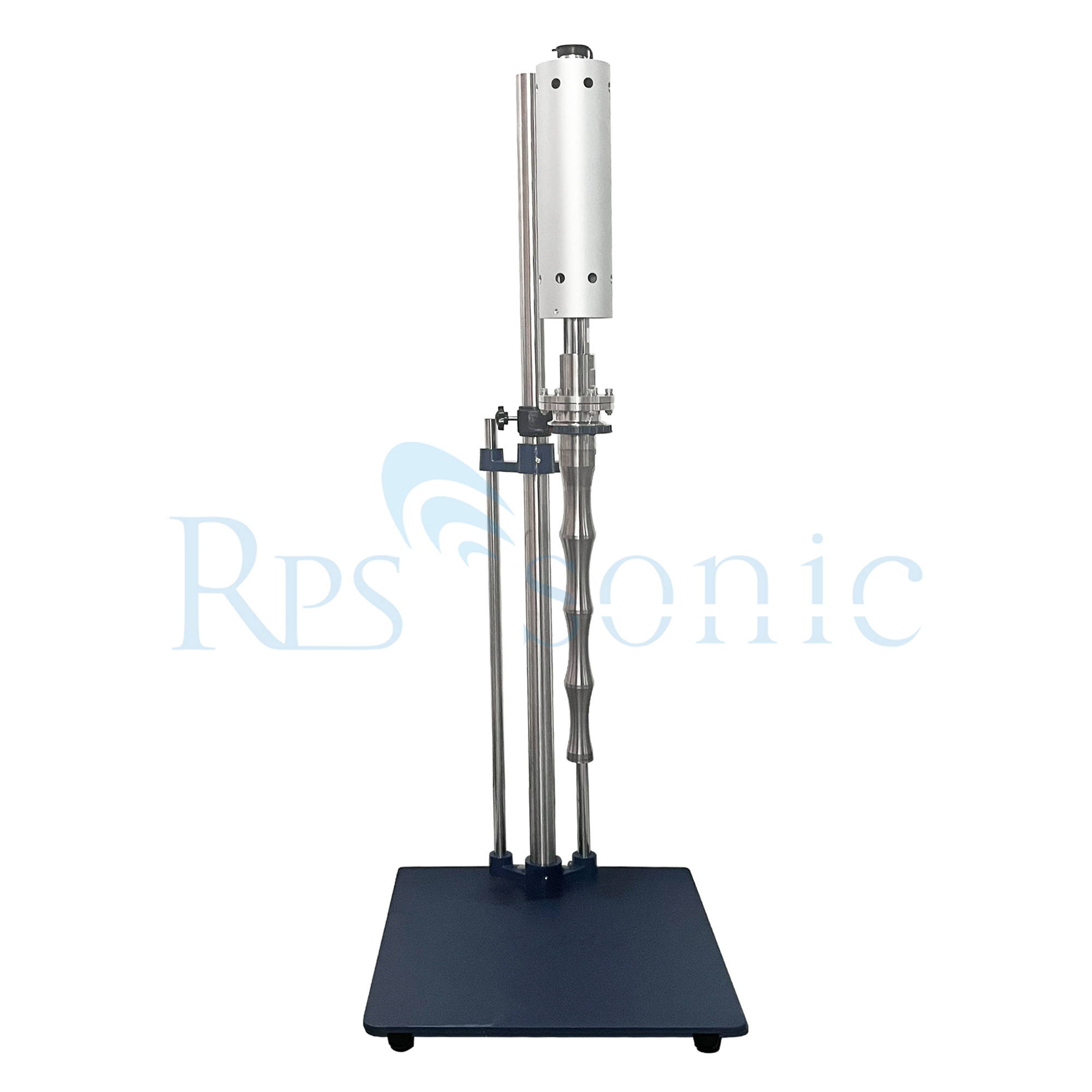

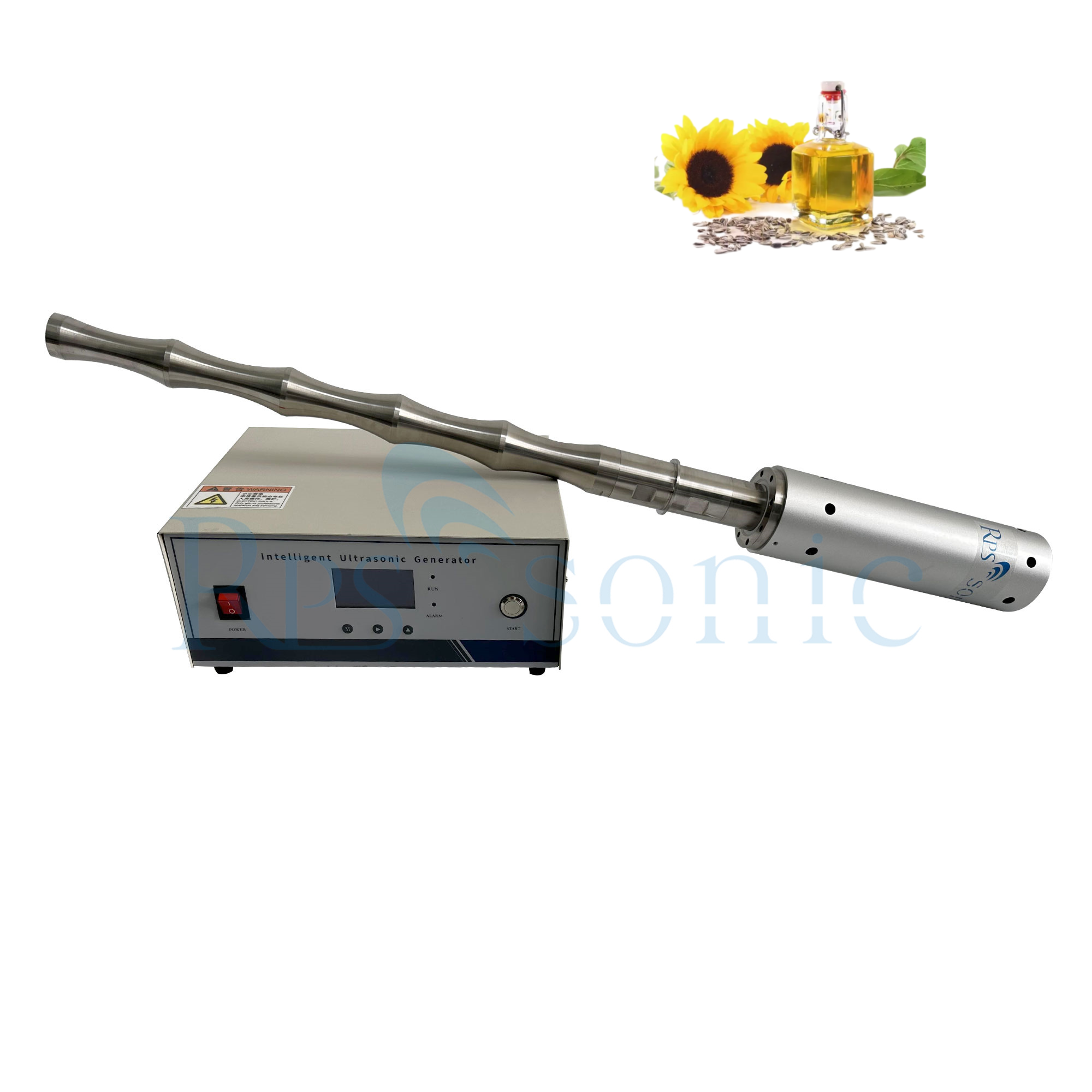

High power ultrasonic water oil mixing machine with industrial holder for emulsification

High power ultrasonic water oil mixing machine with industrial holder for emulsification

short description:

Ultrasonic emulsification equipment is a device that uses ultrasonic energy to perform the emulsification process. It mixes two or more liquids of different properties together to form a uniform emulsion through the vibration and microjet effect generated by ultrasound. Ultrasonic emulsification equipment has many advantages, such as improving emulsification efficiency, reducing emulsification time, and reducing energy consumption.

Product Detail

FAQ

Product Tags

High power ultrasonic water oil mixing machine with industrial holder for emulsification


Parameter

Model SONO20-1000 SONO20-2000 SONO15-3000 SONO20-3000
Frequency 20±0.5 KHz 20±0.5 KHz 15±0.5 KHz 20±0.5 KHz
Power 1000 W 2000 W 3000 W 3000 W
Voltage 220/110V 220/110V 220/110V 220/110V
Temperature 300 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure 35 MPa 35 MPa 35 MPa 35 MPa
Intensity of sound 20 W/cm² 40 W/cm² 60 W/cm² 60 W/cm²
Max Capacity 10 L/Min 15 L/Min 20 L/Min 20 L/Min
Tip Head Material Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy
The working principle of ultrasonic emulsification equipment mainly relies on the cavitation effect of ultrasound. Under the action of strong ultrasound, a large number of bubbles will be generated in the liquid. These bubbles will produce microjets during the vibration and expansion process, mixing liquids of different properties together. At the same time, the vibration of ultrasound will also produce complex multi-layer flows, accelerating the mixing and dispersion of liquids.



Ideal for disruption and sample preparation

  • Frequency: 20 kHz
  • Process for 20L ~50L
  • Automatic tuning circuitry eliminates the need for constant adjustments
  • Continues 8 hours
  • Variable power output control
  • 1-year conditional warranty

Additional features include digital watt meter, thumb actuated pulsar and variable power output control. Unit is shipped complete and ready for operation with a 3-mm titanium probe tool kit and instruction manual.

Application fields of ultrasonic emulsification equipment
Ultrasonic emulsification equipment is widely used in many fields:

Food industry: used in the emulsification process of making chocolate, ice cream, beverages and other foods to improve the taste and stability of food.
Pharmaceutical industry: used in the emulsification process of drug preparation to improve the solubility and stability of drugs.
Cosmetics industry: used in the emulsification process of making cosmetics to improve the stability and spreadability of cosmetics.

Considerations for selecting ultrasonic emulsification equipment
When selecting ultrasonic emulsification equipment, the following aspects need to be considered:

‌Power and frequency‌: Power and frequency are the core parameters of the ultrasonic generator, which directly affect the size and distribution of the droplets. Generally speaking, the higher the frequency, the smaller the droplet size, but the cost of the equipment is also higher.
‌Emulsification head structure‌: The structure of the emulsification head has an important influence on the breakup and mixing effect of the droplets, and the number, shape, and distribution of the emulsification chambers of the emulsification head need to be considered.
‌Equipment stability‌: Equipment stability is a key factor in ensuring production stability, and equipment with a good cooling system and long-term stable operation needs to be selected.
‌Equipment maintainability‌: Equipment that is easy to maintain can reduce the cost of use and reduce downtime.

  • Previous:
  • Next:

    • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
