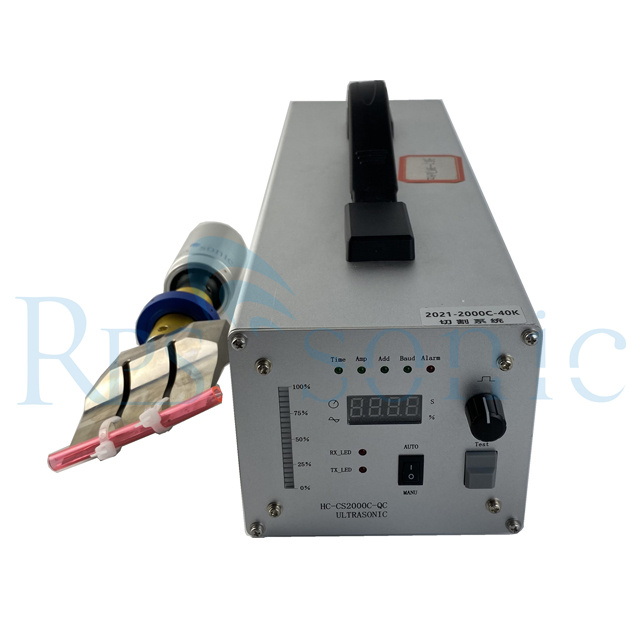

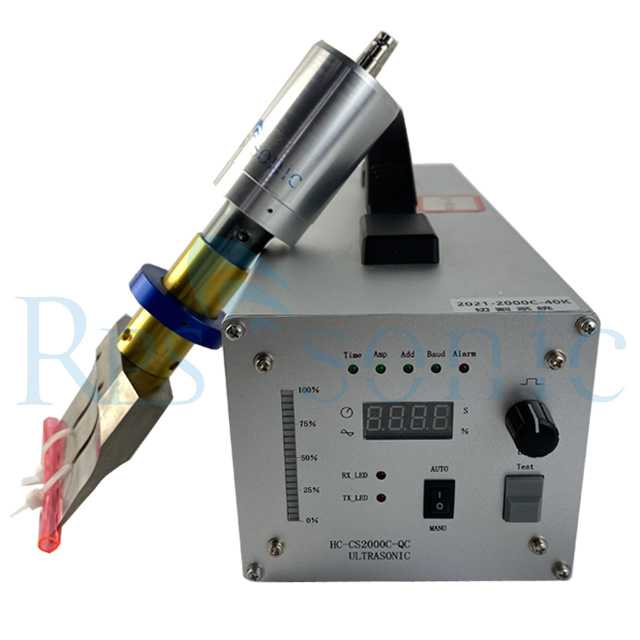

220V Installed Ultrasonic Rubber Cutter 10mm 20mm Cutting Thickness

short description:

Ultrasonic cutting uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. Ultrasonic rubber cutter can easily cut resin, rubber, plastic, fabric and various overlapping composite materials and food.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Frequency: 40Khz
  • Power: 500w
  • Horn material: Titanium
  • Weight: 8kg
  • Condition: 100%New
  • Product Detail

    FAQ

    Product Tags

    220V Installed Ultrasonic Rubber Cutter 10mm 20mm Cutting Thickness



    Parameter

    Machine Ultrasonic rubber/cake Cutter
    Frequency(KHz) 40KHz
    Power 500 W
    Cutting Blade / Horn Titanium
    Voltage(V) 220V
    The width of blade 82.5mm
    Cutting thickness 10~20mm(depend on materials)
    Horn amplitude 10-40μm
    Equipment weight 0.6KG



    Problems with rubber cutting
    Traditional rubber cutting technology needs to lubricate the rubber during cutting, and there are phenomena such as slow cutting speed, large cuts, large amounts of dust, uneven cutting surfaces, and sticky knives. Many companies are still using traditional manual methods for cutting, which not only cannot satisfy productivity but also brings hidden dangers to life safety.

    For rubber products, cold cutting is more suitable than hot cutting. Cold cutting has the advantages of less heat generation, less thermal deformation, less dust during the cutting process, and no aging and cracking of the section due to excessive temperature. Ultrasonic rubber cutting technology belongs to cold cutting, which uses ultrasonic energy to locally heat and melt the cut rubber to achieve the purpose of cutting materials.

    The principle of ultrasonic rubber cutting
    Ultrasonic cutting uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. Ultrasonic rubber cutter can easily cut resin, rubber, plastic, fabric and various overlapping composite materials and food.

    The principle of the ultrasonic rubber cutter is to convert 50/60Hz current into 20, 30 or 40kHz electric energy through an ultrasonic generator. The converted high-frequency electric energy is again converted into mechanical vibration of the same frequency through the transducer, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator devices that can change the amplitude. The ultrasonic rubber cutting knife vibrates along its length with an amplitude of 10-70μm, repeating 40,000 times (40 kHz) per second (the vibration of the blade is microscopic, and it is generally difficult to see with the naked eye). The cutting knife then transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the rubber by activating the molecular energy of the rubber and opening the molecular chain.

    Advantages of ultrasonic rubber cutting
    Very high cutting accuracy-smooth, clear and clean cutting.
    Repeated cutting-the blade output is monitored by a closed loop circuit to provide consistent cutting results.
    Lower temperature-the rubber has almost no heat.
    Dryness — No lubrication is required. The ultrasonic rubber cutter vibrates 20,000 to 40,000 times per second (depending on the application), so the cutter head can pass through the rubber smoothly.
    Low energy consumption-the cutter head only vibrates when cutting, and the power required in a typical thin material application is about 100 watts or less.
    Easy to integrate into automation-the ultrasonic rubber cutting process is very simple and can be upgraded to existing mechanical structures or installed in new equipment.

    rubber cutter
