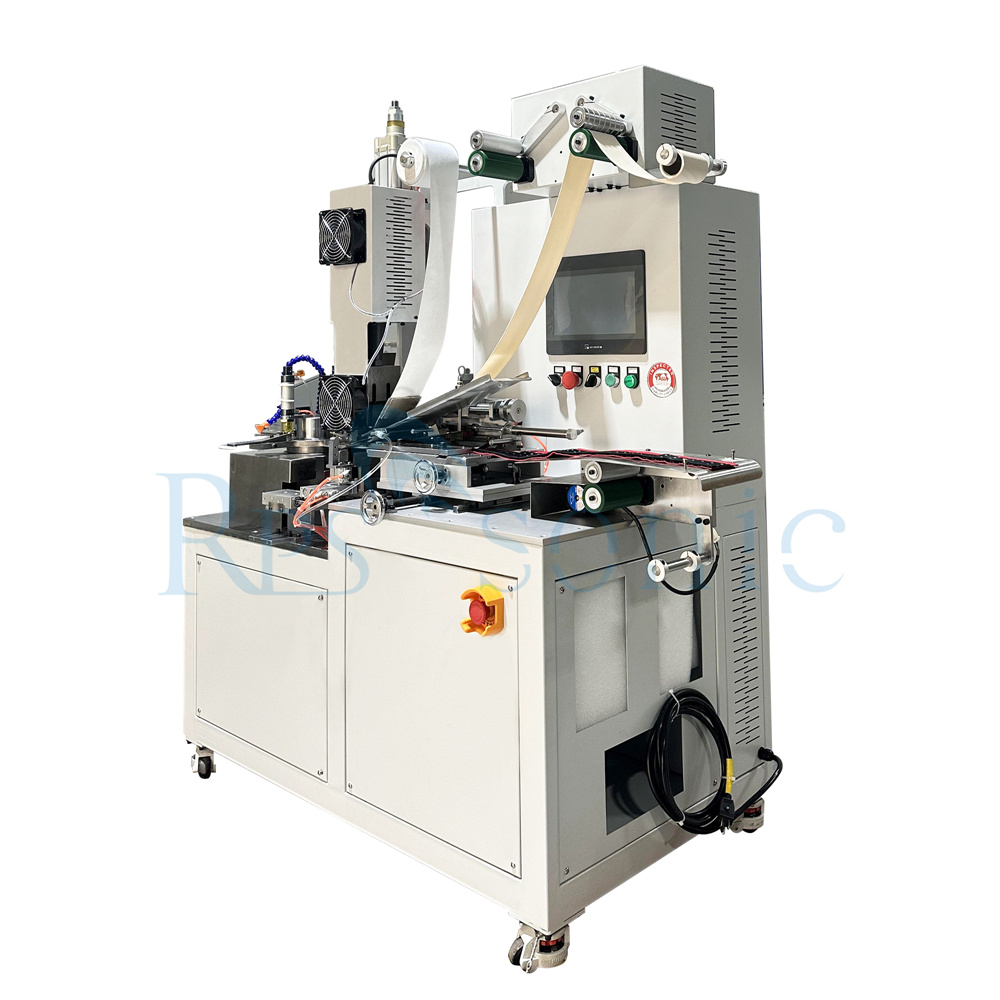

Automatic 20KHz Ultrasonic belt welding and cutting machine

short description:

Ultrasonic welding and cutting machines are advanced tools used in various industries for joining and cutting materials using ultrasonic vibrations. They utilize high-frequency mechanical vibrations, typically in the range of 15 to 70 kHz, to create localized heat and mechanical pressure, enabling the bonding or cutting of materials.

Send email to us

Product Detail

FAQ

Product Tags

Automatic 20KHz Ultrasonic belt welding and cutting machine

Parameter

Item	Parameter
Frequency	15Khz
Power	2600w
Horn size	Customized
Horn material	Steel/Aluminum/Titanium
Generator	Digital

Description

Here's a brief overview of how ultrasonic welding and cutting machines work:

Ultrasonic Welding:
The materials to be joined are placed between the anvil and the sonotrode (also called a horn).
The sonotrode delivers ultrasonic vibrations to the joint area.
The vibrations generate frictional heat at the interface of the materials, causing them to soften and fuse together.
Pressure is applied to the joint, ensuring a strong bond.
The ultrasonic energy is stopped, and the materials cool down, solidifying the bond.
Ultrasonic welding is commonly used for joining thermoplastics, fabrics, films, and non-ferrous metals. It finds applications in industries such as automotive, electronics, medical devices, packaging, and textiles.

Ultrasonic Cutting:
The cutting portion of an ultrasonic machine consists of a vibrating blade or a rotary cutting tool.
The vibrations of the blade or tool are generated by an ultrasonic stack or transducer.
The high-frequency vibrations of the cutting tool create a rapid back-and-forth motion.
The motion, combined with some applied force, allows the material to be cut cleanly and precisely.
The ultrasonic cutting process is often used for materials such as plastics, rubber, textiles, composite materials, and food products.

Previous: 20KHz 2000w ultrasonic medical product welding machine Branson Ultrasonic welding equipment

Next: 20Khz customized ultrasonic welding machine ultrasonic welding plastic

1.Is ultrasonic welding a suitable method for sealing or joining packaging materials?
Yes, ultrasonic welding is commonly used for sealing and joining packaging materials, such as blister packs, clamshell packaging, and flexible pouches. It provides hermetic seals and helps maintain the integrity of the packaged contents.

2.Can ultrasonic welding be used to weld dissimilar materials?
It depends on the melting points of the different materials. If the melting points of the two materials are similar, of course, there is no problem. If the melting point of the two materials is very different, the welding effect will be not good

3.Are there different types of ultrasonic welding equipment?
Yes, there are different types of ultrasonic welding equipment available, including handheld units, benchtop machines, and fully automated systems. The choice of equipment depends on the specific application requirements and production volume.

4.What factors should be considered when selecting an ultrasonic welding machine?
When selecting an ultrasonic welding machine, consider key factors such as the material melting points and thickness, desired welding strength, required production speed, part complexity, and any specific features or customization needed for your application.

5.Is ultrasonic welding a safe process?
Ultrasonic welding is generally considered safe when proper safety precautions are followed. Operators should use appropriate personal protective equipment, such as gloves and safety glasses, and ensure that the equipment is properly maintained and operated within specified parameters.
