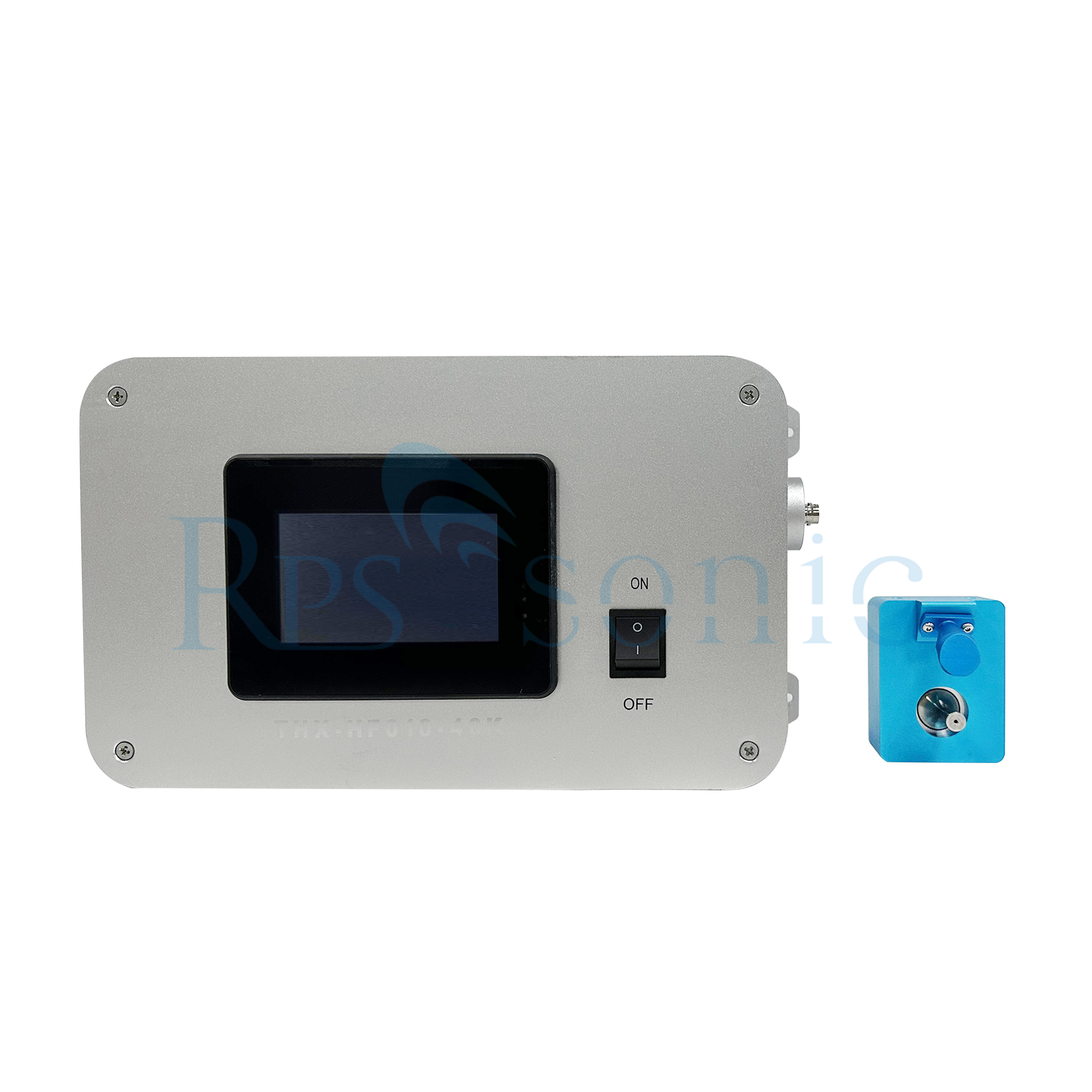

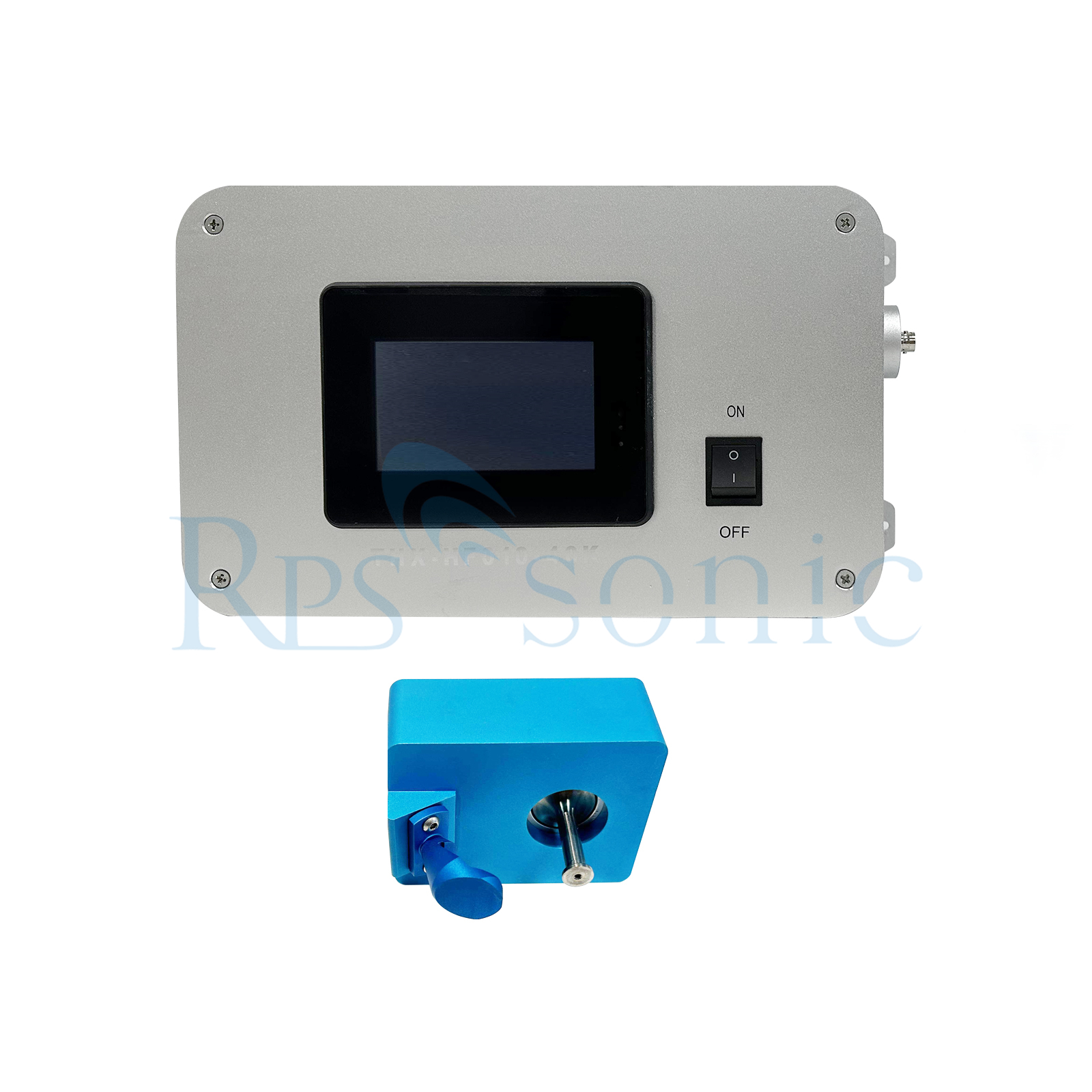

50Khz High Frequency Ultrasonic Atomization Nozzle for antimicrobial coatings

50Khz High Frequency Ultrasonic Atomization Nozzle for antimicrobial coatings

Paramater

Description

Ultrasonic nozzle, also known as ultrasonic atomizing nozzle, is an ultrasonic atomizing device based on the principle of horn transducer. It atomizes the liquid through the amplified high-frequency ultrasonic oscillation, and sends the liquid mist to the object to be sprayed or a specific space through a certain amount of carrier gas. With its unique advantages, ultrasonic nozzles are widely used in the fields of nano- and sub-micron functional coating spraying, spray pyrolysis and spray drying. At the same time, ultrasonic spraying also has the advantages of uniform atomization particles, high precision, extremely low air pressure, 4 times the raw material utilization rate, and no clogging.

Ultrasonic atomization is the use of electronic high-frequency oscillation (the oscillation frequency is 1.7MHz or 2.4MHz, which exceeds the range of human hearing, and the electronic oscillation has no harm to humans and animals), through the high-frequency resonance of the ceramic atomizing sheet The molecular bonds between molecules break up to produce a natural and elegant water mist, without heating or adding any chemical reagents.

Compared with the heating atomization method, energy saving is 90%. In addition, a large amount of negative ions will be released during the atomization process, which will react electrostatically with smoke and dust floating in the air to make them precipitate. At the same time, it can effectively remove formaldehyde, carbon monoxide, bacteria and other harmful substances, so that the air can be purified. Reduce the occurrence of diseases.

Features

Large width spraying, spraying width: 40-150mm

Uniform coating: uniformity>95

Saving raw materials: the utilization rate of raw materials is as high as 85%, which is 4 times that of traditional two-fluid spraying

High precision of coating thickness control: It can prepare coatings from 20 nanometers to tens of micrometers, and accurately control the coating thickness

Atomized particles are uniform, which can achieve ultra-low spray flow

Can achieve intermittent or continuous spray

Not easy to block the nozzle

Anti-corrosion sprinkler

Can achieve high precision and high controllability spraying

Application

Spraying in the field of new energy: fuel cells, thin-film solar cells

Spraying in the glass field: anti-reflection AR, hydrophilic and hydrophobic coating, conductive layer, etc.

Spraying in the electronic field: flux, photoresist, conformal paint

Non-woven fabric and textile spraying

Spraying in the biomedical field

Conductive film: conductive films such as carbon nanotubes, graphene, nano silver, etc.

• Previous:35Khz High speed Ultrasonic sewing machine for pp/fabric sewing
• Next:50khz 30w High frequency Ultrasonic spray coating equipment easy to use for thin film spraying

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
