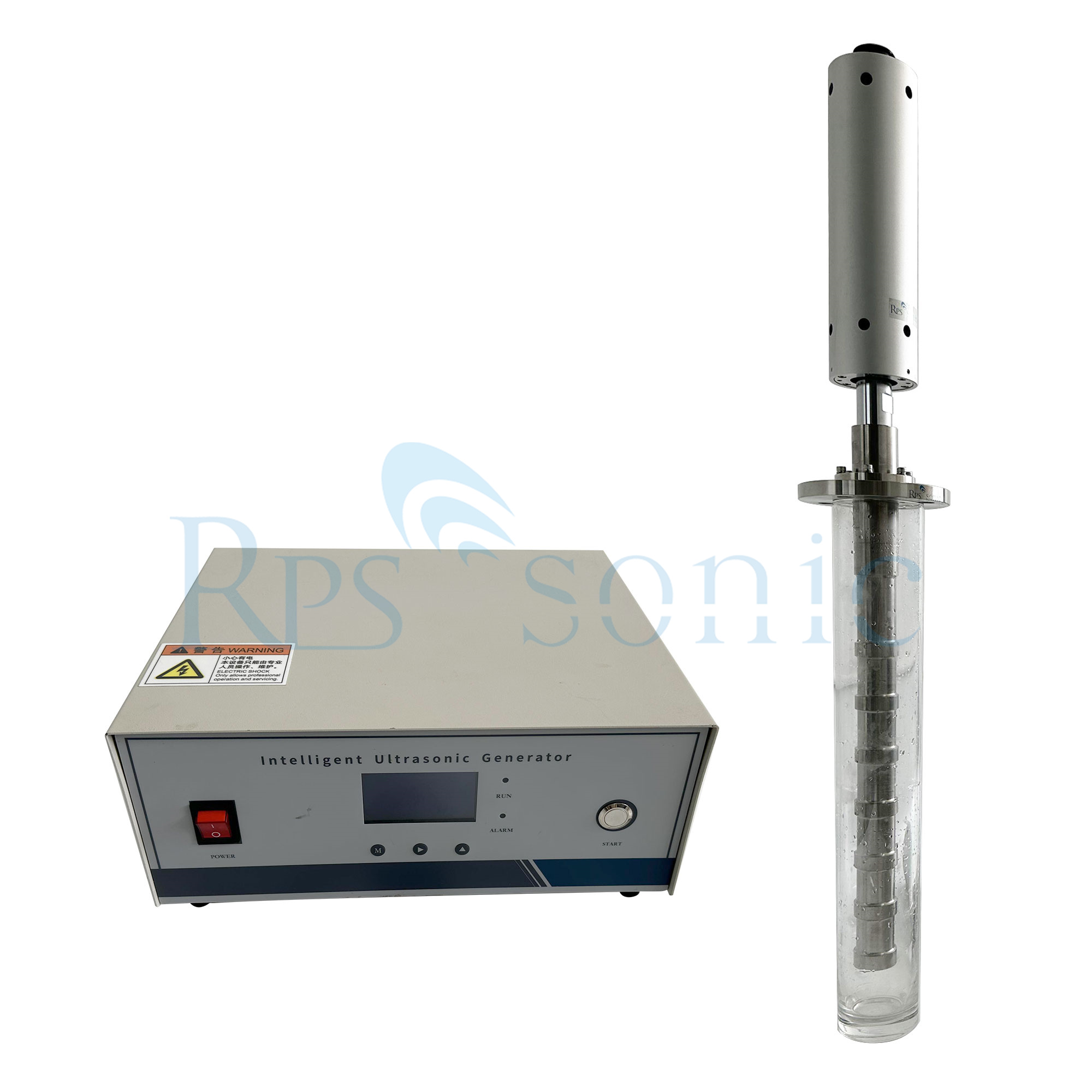

Ultrasonic Ballast Water Disinfection by ultrasonic treatment system


Frequency: 20khz Power: 3000W
Generator: Digital Generator Horn: Titanium Alloy
Capacity: 20 L/Min
High Light:

ultrasonic homogenizer sonicator


ultrasonic cell disruptor

Ultrasonic Ballast Water Disinfection by ultrasonic treatment system



Model SONO20-1000 SONO20-2000 SONO15-3000 SONO20-3000
Frequency 20±0.5 KHz 20±0.5 KHz 15±0.5 KHz 20±0.5 KHz
Power 1000 W 2000 W 3000 W 3000 W
Voltage 220/110V 220/110V 220/110V 220/110V
Temperature 300 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure 35 MPa 35 MPa 35 MPa 35 MPa
Intensity of sound 20 W/cm² 40 W/cm² 60 W/cm² 60 W/cm²
Max Capacity 10 L/Min 15 L/Min 20 L/Min 20 L/Min
Tip Head Material Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy


Ultrasonic Ballast Water Disinfection The ultrasonic treatment system

Ultrasonic Ballast Water Treatment Marine fouling organisms can be divided into the following three categories

  • Soft growths such as sponges;
  • Bacteria and single-cell organic matter, such as various types of bacteria and algae;
  • Hard marine animals, such as barnacles, bivalve molluscs, etc.

Sound can be described as mechanical energy transmitted by pressure waves in a material medium. Thus, sound can be described as a form of energy or a sound is said to be mechanical. This distinguishes sound energy form other forms of energy, such as electromagnetic energy. This general definition encompasses all types of sound, including audible sound, low-frequency seismic waves (infrasound), and ultrasound.

Ultrasound is cyclic sound pressure with a frequency greater than the upper limit of human hearing. Although this limit varies from person to person, it is approximately 20 kilohertz (20,000 hertz) in healthy, young adults and thus, 20 kHz serves as a useful lower limit in describing ultrasound.

Ultrasound Applications
Current applications of ultrasound includes for example: sonochemistry (emulsification, acceleration of chemical reactions, extraction etc.) dispersion, and disruption of biological cells (ultrasonic disintegration), removal of trapped gases, cleaning of microscopic contamination, ultrasonic humidifier, ultrasound identification (USID), and typically to penetrate a medium and measure the reflection signature or supply focused energy. The reflection signature can reveal details about the inner structure of the medium. The most well known application of this technique is its use in sonography to produce pictures of fetuses in the human womb. Other application is using ultrasound in cancer diagnose.

The numbers of ultrasound application is numerous. Combining the right frequencies, the right amplitude and using the right transducer numerous types of ultrasound application can be achieved… ‘The Sky Is The Limit’…

Ultrasound Forces
Exposing liquids to high mechanical pressure waves (or sound waves), forces as acoustical streaming, stable cavitation and transient (unstable or inertial) cavitation can be induced.

For example ultrasonic disintegration, sonochemistry and sonoluminescence arises from acoustic cavitation: the formation, growth, and implosive collapse of bubbles in a liquid. Cavitational collapse produces intense local heating (~5000 K), high pressures (~1000 atm), and enormous heating and cooling rates (>10 9 K/sec). Acoustic cavitation provides a unique interaction of energy and matter, and ultrasonic irradiation of liquids causes high energy chemical reactions to occur, often accompanied by the emission of light.

This can only be achieved in specific situation involving specific frequencies of high ultrasound power (high W•cm-2, high dB) exposed to relatively low liquid volumes of relatively low temperatures.

Professional Ultrasonic Liquid Processor Efficient Water Treatment 0

  • Previous:
  • Next:

  • Q1.What kind material of the horn?

    A. Titanium alloy, we also customized aluminum hom for customer before.

    Q2.What’s the time of delivery?

    A. For Conventional hom, 3 days, for customized hom 7 work days.

    Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

    A. No . but some time need Mechanical stiring.

    Q4.Can the device work continously?

    A. Yes ,it can work 24hours continously.

    Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

    A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

    Q6.What’s the warranty of your sonicator equipment?

    A. All equipment one year warranty.
